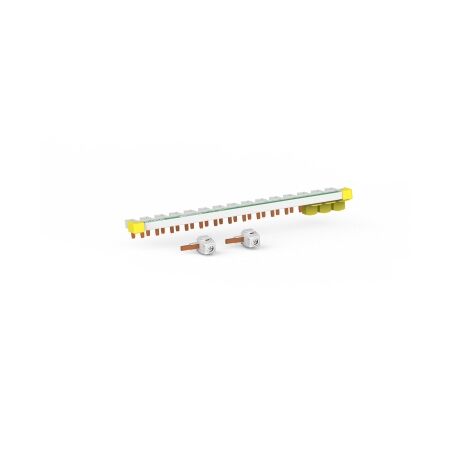

MAX9 Top Feed Comb Busbar | 15 Modules | 100A | Insulated Design by Clipsal

BRAND: Clipsal
SKU: MX9B115
$47.90 List price: $71.90
+
MAX9 top feed comb busbar with 15 modules and 100A current—ideal for residential circuit protection. Built for safety with insulated design and horizontal mounting, perfect for homes and apartments.

Product Name/Title: MAX9, MAXBAR Top Feed, 1P+N, 15 Modules, 100 A with Accessories

Brand: Clipsal

SKU: MX9B115

Alternatively Known As: MAX9 Comb Busbar, Clipsal Busbar, 100A Busbar

Technical Specifications
  • Rated operational voltage: 230 V AC
  • Rated insulation voltage: 500 V
  • Rated impulse withstand voltage: 4 kV
  • Connection pitch: 9 mm
  • Provided equipment: 2 connectors and 3 tooth covers
  • Dimensions (H x L x W): 40mm x 300mm x 125mm
  • Weight: 0.18 kg
Key Features
  • 15 modules with a rated operational current of 100 A.
  • Horizontal mounting mode.
  • Insulated design with a fire resistance of 960 °C.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes and apartments
Standards & Compliance
  • Complies with AS/NZS 61439-3 and AS/NZS 3000 standards.
Environmental Benefits
  • Compliant with EU RoHS directive and toxic heavy metal free.
Warranty Information

7 years warranty against manufacturing defects.

Available Now

The Clipsal MAX9 Top Feed Comb Busbar is available now for immediate purchase. Ideal for residential circuit protection.

MX9B115 (MX9B115, 208 Kb) [Download]
