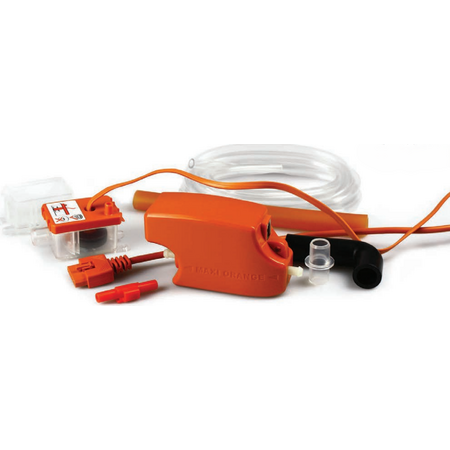

Maxi Orange Condensate Pump 35L h Max Flow 15m Head Aspen Pumps
The Maxi Orange Condensate Pump is designed for efficient condensate removal in large commercial HVAC units
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Max flow: 35L/h @ 0 head
- Max recommended head: 15m
- Max suction lift: 1.5m
- Noise level: 35 dB(A) @ 1m
- Power supply: 230 VAC, 0.11A, 16W, 50/60Hz
- Rated non-continuous
- Max water temperature: 40°C / 104°F
- Discharge tube: 6mm ID
- IP Protection: IP21
- Safety switch: 3.0A Normally closed
- Thermal protection: Yes
- Fully potted: Yes
- Self priming: Yes
- Dimensions (H x L x W): 150mm x 180mm x 120mm
- Weight: 1.2 kg
Key Features
- High vertical discharge
- Superior performance

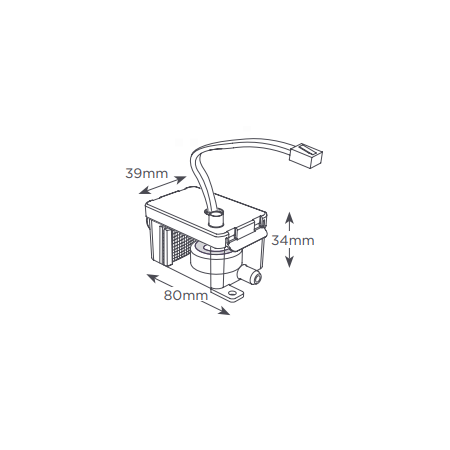

- Submersible secondary reservoir included
- Anti-Siphon Device
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure proper setup and compliance with safety standards.
Applications
- High wall split systems
- Ducted units
- Floor standing units
- Chassis units
- Large commercial HVAC units
Standards & Compliance
- AS/NZS 60335 – Safety of household and similar electrical appliances
Environmental Benefits
- Efficient condensate removal helps prevent water damage and mold growth, promoting healthier indoor environments.
- Energy-efficient motor reduces power consumption.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Aspen Maxi Orange Condensate Removal Pump is available now for immediate purchase. Ideal for large commercial HVAC units requiring reliable condensate management.
