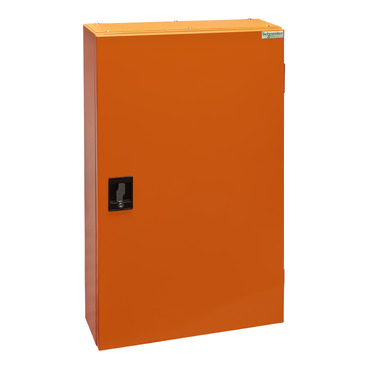

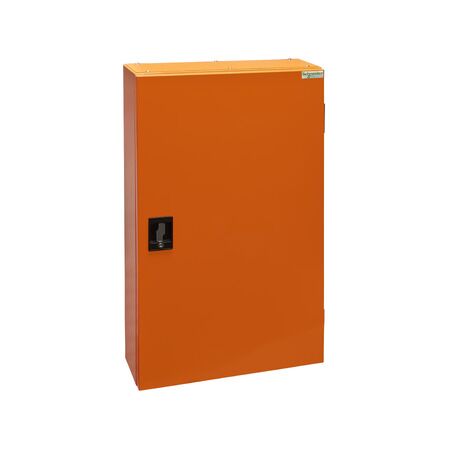

MB 48P C60 IP42 160A Orange Distribution Board | 48 Pole Capacity | Lockable Door | Surface Mount Design | @Pack of 1 | by Clipsal
The MB 48P C60 IP42 160A Orange Distribution Board is designed for robust electrical distribution in commercial and industrial settings. With a 48 pole capacity and a maximum current rating of 160A, this surface mount board features a lockable door for enhanced safety. Its IP42 rating ensures protection against solid objects and dripping water, making it ideal for warehouses, factories, and large residential complexes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MB 48P C60 IP42 160A Orange Distribution Board | 48 Pole Capacity | Lockable Door | Surface Mount Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHMB248D31X15
Alternatively Known As: ['Clipsal 48 Pole Distribution Board', 'Clipsal MB48P C60 Switchboard', 'Clipsal Orange 160A Panel', 'Clipsal SCHMB248D31X15', 'Clipsal IP42 Distribution Board']
Technical Specifications
- Number of Poles: 48
- Maximum Current: 160A
- Ingress Protection: IP42 (protected against solid objects >1mm and dripping water)
- Material: Powder-coated steel
- Mounting: Surface mount
- Colour: Orange
- Door: Lockable
- Rated Voltage: 415V AC
- Dimensions (H x L x W): 800mm x 160mm x 600mm
- Weight: 12 kg
Key Features
- 48 pole capacity for circuit breakers
- IP42 rated for indoor protection against solid objects and dripping water
- 160A maximum current rating
- Robust orange powder-coated steel construction
- Surface mount design for easy installation
- Lockable door for enhanced safety and security
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution
- Large residential complexes
- Switchboard and sub-distribution panel installations
- Warehouses, factories, and plant rooms
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 61439 – Low-voltage switchgear and controlgear assemblies
Environmental Benefits
- Durable steel construction ensures long service life, reducing replacement frequency and waste.
- Powder-coated finish is low-VOC and environmentally safer than traditional paints.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal MB 48P C60 IP42 160A Orange Distribution Board (SCHMB248D31X15) is available for immediate purchase. Ideal for commercial and industrial switchboard applications.
