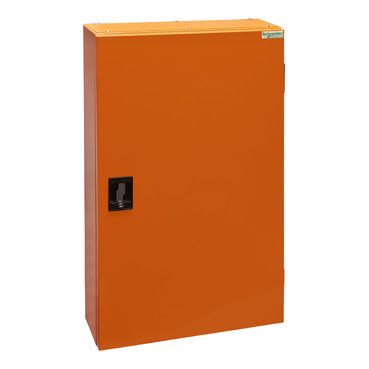

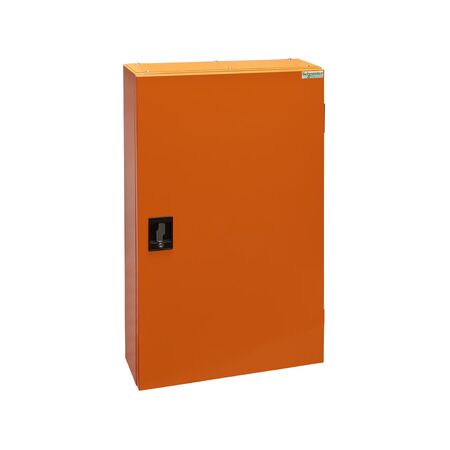

MB Std Dist Board Isobar Chassis | IP42 Rated | 36 Ways | Surface Mount | by Clipsal
The MB Std Dist Board Isobar Chassis is an IP42 rated distribution board designed for commercial and industrial electrical distribution. With a robust powder-coated steel construction and 36 ways for circuit configurations, it ensures enhanced safety and durability. Ideal for licensed electricians, this board supports efficient power distribution in offices, factories, and public buildings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MB Std Dist Board Isobar Chassis | IP42 Rated | 36 Ways | Surface Mount | by Clipsal
Brand: Clipsal
SKU: SCHMB236DM2X15
Alternatively Known As: Distribution Board, Isobar Chassis, Electrical Panel, Switchboard, Power Distribution Board
Technical Specifications
- Type: Standard Distribution Board with Isobar Chassis
- IP Rating: IP42
- Material: Powder-coated steel
- Mounting: Surface mount
- Number of Ways: 36
- Chassis: Double row
- Voltage Rating: 415V AC
- Current Rating: Up to 250A
- Compliance: Designed for Australian electrical installations
- Dimensions (H x L x W): 800mm x 150mm x 600mm
- Weight: 7.5 kg
Key Features
- IP42 rated for protection against solid objects and dripping water
- Isobar chassis for enhanced safety and circuit separation
- Standard distribution board suitable for multiple circuit configurations
- Robust steel construction for durability
- Surface mount design for easy installation
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with Australian standards and local regulations.
Applications
- Commercial and industrial electrical distribution
- Switchboard and panel board installations
- Power distribution in offices, factories, and public buildings
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports efficient electrical distribution, reducing energy loss
- Durable construction minimizes replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal MB Std Dist Board Isobar Chassis IP42 SCHMB236DM2X15 is available for immediate purchase. Ideal for commercial and industrial electrical distribution applications.
