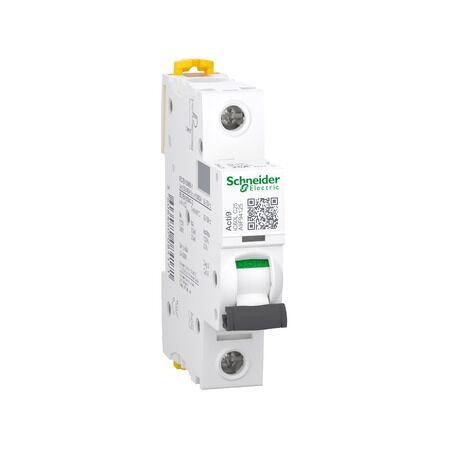

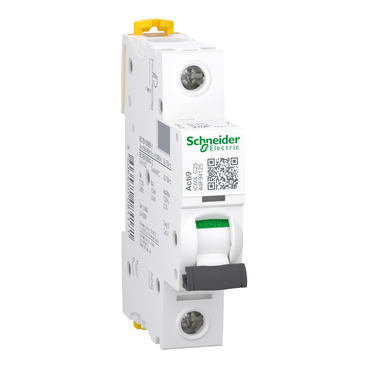

MCB 1 Phase 25 Amp C Curve | 1 Pole Miniature Circuit Breaker | High Breaking Capacity | DIN Rail Mount | @Pack of 1 | by Clipsal
The MCB 1 Phase 25 Amp C Curve is a reliable miniature circuit breaker designed for residential and commercial electrical protection. With a 25 Amp rated current and C Curve tripping characteristic, it ensures high breaking capacity for general applications. Ideal for use in distribution boards and panel boards, this compact breaker features quick DIN rail mounting and clear ON/OFF indication for easy operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB 1 Phase 25 Amp C Curve | 1 Pole Miniature Circuit Breaker | High Breaking Capacity | DIN Rail Mount | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9F94125
Alternatively Known As: Miniature Circuit Breaker, 25A MCB, Single Pole MCB, Clipsal SCHA9F94125, C Curve Breaker, 1P 25A MCB
Technical Specifications
- Type: Miniature Circuit Breaker (MCB)
- Number of Poles: 1
- Rated Current: 25A
- Tripping Curve: C
- Rated Voltage: 230/240V AC
- Breaking Capacity: 6kA
- Mounting: DIN rail
- Standards: IEC 60898-1
- Operating Temperature: -25°C to +60°C
- Terminal Capacity: 1-25mm²
- Dimensions (H x L x W): 85mm x 75mm x 18mm
- Weight: 0.12 kg
Key Features
- 1 pole miniature circuit breaker (MCB)
- 25 Amp rated current
- C Curve tripping characteristic for general applications
- High breaking capacity for reliable protection
- Quick and easy DIN rail mounting
- Clear ON/OFF indication
- Compact design for space-saving installation
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with local wiring rules and standards.
Applications
- Residential electrical distribution boards
- Commercial and industrial panel boards
- Protection of lighting and power circuits
- Suitable for use in switchboards and consumer units
Standards & Compliance
- Complies with AS/NZS 60898.1 for circuit breakers for overcurrent protection
Environmental Benefits
- Reduces risk of electrical fires by providing reliable circuit protection
- Long operational life minimizes replacement waste
- Energy efficient operation with minimal standby losses
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal MCB 1 Phase 25 Amp C Curve SCHA9F94125 is available for immediate purchase. Ideal for residential, commercial, and industrial electrical protection applications.
