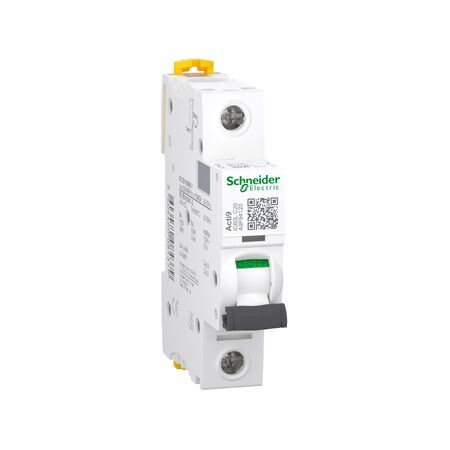

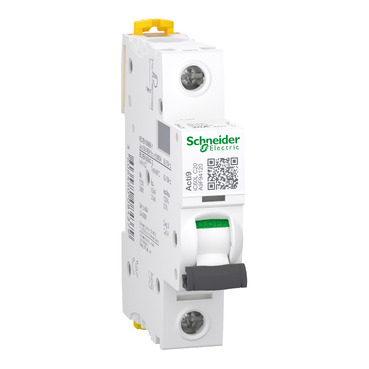

MCB 1 Pole 20 Amp 10kA | Thermal-Magnetic Trip | DIN Rail Mountable | Compact Design | @Pack of 1 | by Clipsal
MCB 1 Pole 20 Amp 10kA is designed for reliable circuit protection in residential and commercial electrical distribution boards. With a robust 10kA breaking capacity and thermal-magnetic trip unit, it ensures safety against overloads and short circuits. Ideal for licensed electricians, this compact and DIN rail mountable breaker simplifies installation while providing essential protection for lighting and power circuits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB 1 Pole 20 Amp 10kA | Thermal-Magnetic Trip | DIN Rail Mountable | Compact Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9F94120
Alternatively Known As: Miniature Circuit Breaker, 20A MCB, Single Pole MCB, Clipsal SCHA9F94120, 1P 20A 10kA Breaker
Technical Specifications
- Rated current: 20A
- Number of poles: 1
- Breaking capacity: 10kA
- Tripping characteristic: C curve
- Rated voltage: 240/415V AC
- Mounting: DIN rail
- Trip unit: Thermal-magnetic
- Standards: IEC 60898-1
- Dimensions (H x L x W): 85mm x 75mm x 18mm
- Weight: 0.12 kg
Key Features
- 1 pole miniature circuit breaker
- 20 Amp rated current
- 10kA breaking capacity
- Thermal-magnetic trip unit for overload and short-circuit protection
- DIN rail mountable
- Compact design for easy installation
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local regulations and standards.
Applications
- Residential and commercial electrical distribution boards
- Industrial control panels
- Protection of lighting and power circuits
- General circuit protection in buildings
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 60898.1 – Electrical accessories: Circuit-breakers for overcurrent protection
Environmental Benefits
- Reduces risk of electrical fires by providing reliable circuit protection
- Long operational life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal MCB 1 Pole 20 Amp 10kA SCHA9F94120 is available for immediate purchase. Ideal for use in electrical distribution boards for residential, commercial, and industrial applications.
