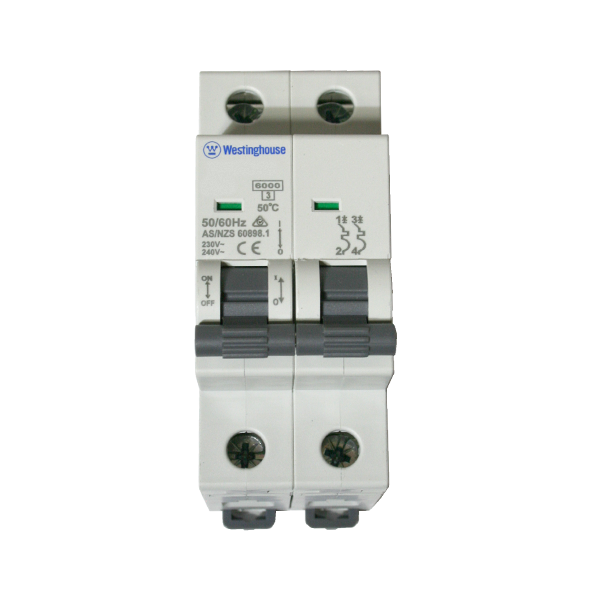

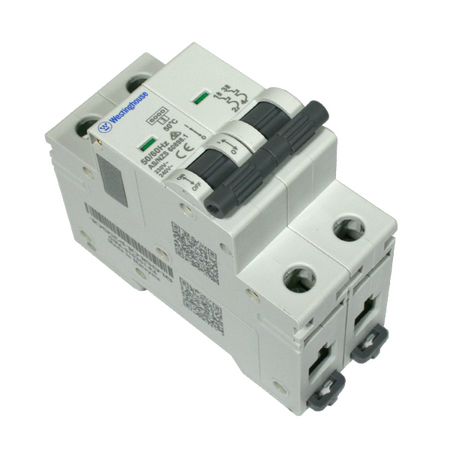

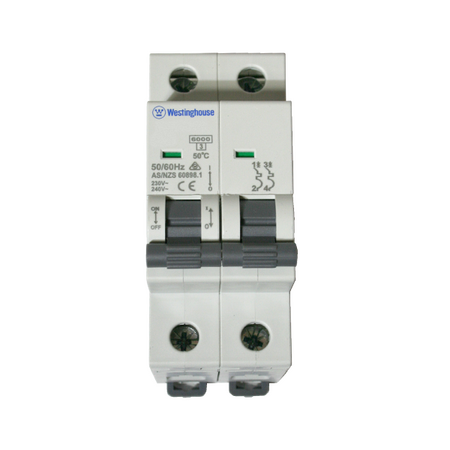

MCB 63A 2P C Curve Circuit Breaker | 6kA Breaking Capacity | DIN Rail Mount | Eltech
MCB 63A 2P C Curve circuit breaker with a 6kA breaking capacity and DIN rail mounting—ideal for residential and commercial power distribution. Built for reliable overcurrent protection, it ensures safety and compliance with AS/NZS 60898 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB 63A 2P C Curve 6kA
Brand: Eltech
SKU: DN2C63S
Alternatively Known As: Miniature Circuit Breaker 63A 2 Pole C Curve 6kA, MCB 63 Amp 2P C Curve
Technical Specifications
- Rated Current: 63A
- Poles: 2
- Tripping Curve: C Curve
- Breaking Capacity: 6kA
- Mounting: DIN Rail
- Standards Compliance: AS/NZS 60898
- Dimensions (H x L x W): 80mm x 70mm x 36mm
- Weight: 0.2 kg
Key Features
- 63 Ampere rated current
- 2 Pole configuration
- C Curve tripping characteristic for general use
- 6kA short circuit breaking capacity
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards.
Applications
- Residential electrical distribution panels
- Commercial power distribution systems
- Industrial circuit protection
Standards & Compliance
- AS/NZS 60898 – Circuit Breakers for Overcurrent Protection
Environmental Benefits
- Helps prevent electrical fires by providing reliable overcurrent protection
- Supports energy efficiency by protecting electrical circuits from damage
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Eltech MCB 63A 2P C Curve 6kA is available for immediate purchase, ideal for use in power distribution and circuit protection applications.
