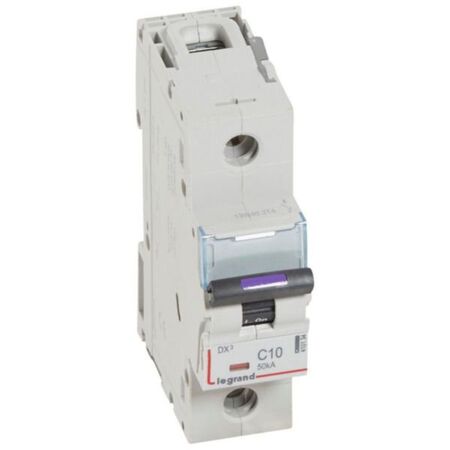

MCB DX3 1 Pole 10A Curve C | 50kA Breaking Capacity | IP20 Rated | @EA of 1 | by Legrand
The MCB DX3 1 Pole 10A Curve C is a reliable miniature circuit breaker designed for residential and small commercial electrical panels. With a breaking capacity of 50kA and IP20 protection, it ensures safety and efficiency in low voltage installations. Ideal for qualified electricians, this circuit breaker features a red/green mechanical indicator for contact status and is compatible with Legrand DX3 auxiliaries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB DX3 1 Pole 10A Curve C | 50kA Breaking Capacity | IP20 Rated | @EA of 1 | by Legrand
Brand: Legrand
SKU: 410134
Alternatively Known As: Miniature Circuit Breaker 10A C Curve, Legrand DX3 MCB, 1 Pole Circuit Breaker 10 Amp
Technical Specifications
- Rated current: 10 A
- Rated voltage: 230 V AC
- Rated insulation voltage Ui: 500 V
- Rated impulse withstand voltage Uimp: 6 kV
- Frequency: 50-60 Hz
- Rated short-circuit breaking capacity Icu: 50 kA
- Number of poles: 1
- Release characteristic: Curve C
- Degree of protection: IP20
- Pollution degree: 3
- Connectable conductor cross section multi-wired: 1.5-35 mm²
- Connectable conductor cross section solid-core: 1.5-50 mm²
- Operating ambient temperature: -25 to 70 °C
- Storage temperature: -40 to 70 °C
- Degree of impact strength: IK02
- Flush-mounted installation capable
- Dimensions (H x L x W): 128mm x 79mm x 27mm
- Weight: 0.1 kg
Key Features
- Breaking capacity of 50kA according to IEC 60947-2
- Tripping threshold between 50A and 100A (C curve)
- Protected against solid bodies larger than 12.5mm (IP20)
- Equipped with red/green mechanical indicator for contact status
- Label holder for clear circuit identification
- Compatible with Legrand DX3 auxiliaries, RCD add-on modules, and accessories
- Can be connected to aluminium cable with terminal accessory
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with installation rules to ensure safety and proper operation.
Applications
- Residential electrical panels
- Small commercial electrical panels
- Circuit protection in low voltage installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with an environmentally conscious process
- Complies with substance-restriction requirements to reduce harmful materials
Warranty Information
Warranty terms as provided by Legrand, typically covering manufacturing defects. Refer to official Legrand documentation for details.
Available Now
The Legrand MCB DX3 1 Pole 10A Curve C Miniature Circuit Breaker is available for immediate purchase, ideal for residential and small commercial electrical panel protection.
