MCB DX3 1 Pole 16A Curve C | 25kA Breaking Capacity | IP20 Rated | @EA of 1 | by Legrand
MCB DX3 1 Pole 16A Curve C is designed for reliable circuit protection in residential and small commercial electrical panels. With a breaking capacity of 25kA and IP20 rating for fingerproof protection, it ensures safety and compliance with local electrical standards. Ideal for overcurrent protection in lighting and power circuits, this miniature circuit breaker is compatible with Legrand DX3 auxiliaries for enhanced functionality.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

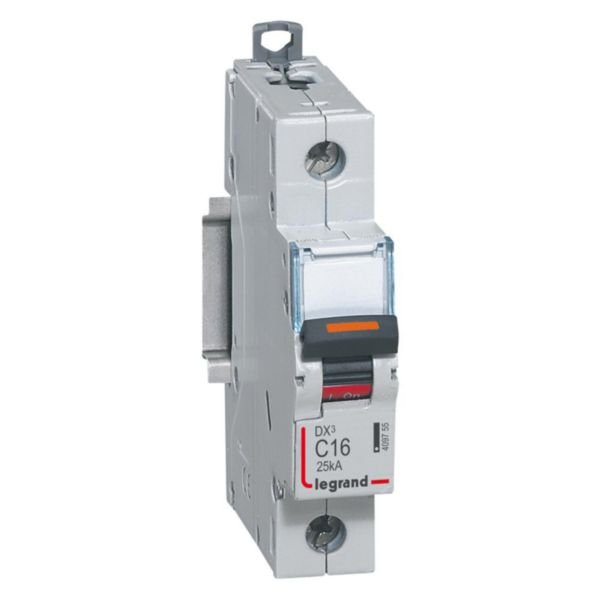

Product Name/Title: MCB DX3 1 Pole 16A Curve C | 25kA Breaking Capacity | IP20 Rated | @EA of 1 | by Legrand
Brand: Legrand
SKU: 409755
Alternatively Known As: Miniature Circuit Breaker 16A C Curve, Legrand DX3 MCB 1P 16A, 1 Pole Circuit Breaker 16 Amp C Curve
Technical Specifications
- Rated current: 16 A
- Rated voltage: 230 V AC
- Breaking capacity: 25 kA at 230 V according to IEC 60947-2
- Number of poles: 1
- Release characteristic: Curve C
- Rated insulation voltage Ui: 500 V
- Rated impulse withstand voltage Uimp: 4 kV
- Frequency: 50-60 Hz
- Degree of protection: IP20
- Pollution degree: 3
- Connectable conductor cross section multi-wired: 1.5-25 mm²
- Connectable conductor cross section solid-core: 1.5-35 mm²
- Mounting method: DIN rail
- Operating ambient temperature: -25 to 70 °C
- Storage temperature: -40 to 70 °C
- Degree of impact strength: IK02
- Electric supply direction: Top or bottom
- Connection type: Screwed terminal, busbar and cable
- Dimensions (H x L x W): 95mm x 78mm x 18mm
- Weight: 0.1 kg
Key Features
- Breaking capacity of 25kA according to IEC 60947-2
- Tripping threshold between 80A and 160A (C curve)
- Fingerproof protection with IP20 rating
- Compatible with Legrand DX3 auxiliaries and accessories
- Can be connected to copper or aluminium cables with appropriate accessories
- Equipped with label holder for circuit identification
- On/Off status indication on handle with red and green backgrounds
- Fitted with two DIN rail clamps for easy installation and removal
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with local electrical installation standards to ensure safety and proper operation.
Applications
- Residential and small commercial electrical panels
- Circuit protection in electrical distribution systems
- Overcurrent protection for lighting and power circuits
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with an environmentally conscious process
- Halogen-free materials reduce environmental impact
- Complies with substance-restriction requirements
Warranty Information
Warranty terms as per Legrand standard policy; typically covers manufacturing defects for a period of 1-2 years.
Available Now
The Legrand MCB DX3 1 Pole 16A Curve C Miniature Circuit Breaker is available for immediate purchase, ideal for residential and small commercial electrical panel protection.
