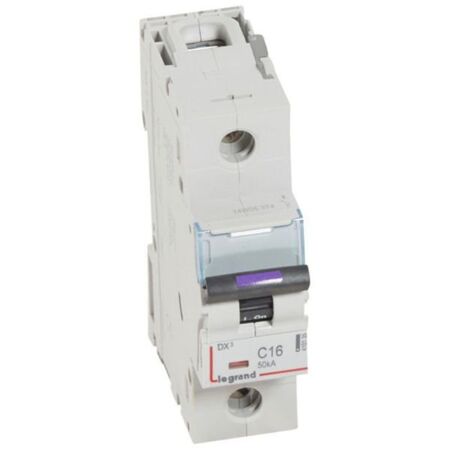

MCB DX3 1 Pole 16A Curve C | 50kA Breaking Capacity | IP20 Rated | @Each of 1 | by Legrand
The MCB DX3 1 Pole 16A Curve C is a reliable miniature circuit breaker designed for residential and small commercial electrical panels. With a breaking capacity of 50kA and IP20 protection, it ensures safety and efficiency in circuit protection. Ideal for qualified electricians, this breaker features a tripping characteristic of Curve C, making it perfect for various applications in distribution boards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB DX3 1 Pole 16A Curve C | 50kA Breaking Capacity | IP20 Rated | @Each of 1 | by Legrand
Brand: Legrand
SKU: 410135
Alternatively Known As: Miniature Circuit Breaker 16A C Curve, Legrand DX3 MCB, 1 Pole Circuit Breaker 16 Amp
Technical Specifications
- Rated current: 16 A
- Rated voltage: 230 V AC
- Breaking capacity: 50 kA at 230 V
- Tripping characteristic: Curve C (5 to 10 times rated current)
- Number of poles: 1
- Degree of protection: IP20
- Pollution degree: 3
- Rated insulation voltage Ui: 500 V
- Rated impulse withstand voltage Uimp: 6 kV
- Frequency: 50-60 Hz
- Connectable conductor cross section multi-wired: 1.5-35 mm²
- Connectable conductor cross section solid-core: 1.5-50 mm²
- Operating ambient temperature: -25 to 70 °C
- Storage temperature: -40 to 70 °C
- Degree of impact strength: IK02
- Flush-mounted installation capable
- Dimensions (H x L x W): 128mm x 79mm x 27mm
- Weight: 0.1 kg
Key Features
- Breaking capacity of 50kA according to IEC 60947-2
- Tripping threshold between 80A and 160A (C curve)
- Protected against solid bodies larger than 12.5mm (IP20)
- Equipped with red/green mechanical indicator for contact status
- Label holder for clear circuit identification
- Compatible with Legrand DX3 auxiliaries and accessories
- Can connect to aluminium cables with terminal accessory
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with local electrical installation standards to ensure safety and proper operation.
Applications
- Residential electrical panels
- Small commercial electrical panels
- Circuit protection in distribution boards
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with an environmentally conscious process
- Complies with substance-restriction requirements to reduce hazardous materials
Warranty Information
Warranty terms as per Legrand standard policy; typically 2 years against manufacturing defects.
Available Now
The Legrand MCB DX3 1 Pole 16A Curve C Miniature Circuit Breaker is available for immediate purchase, ideal for residential and small commercial electrical panel circuit protection.
