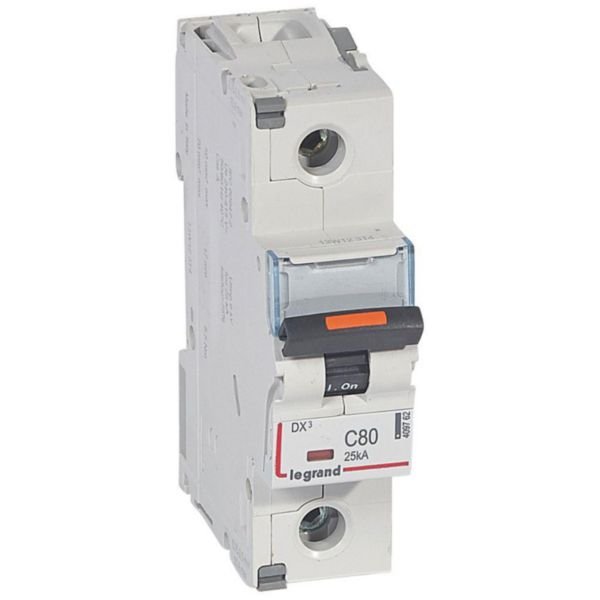

MCB DX3 1 Pole 80A Curve C | 25kA Breaking Capacity | IP20 Rated | @EA of 1 | by Legrand
The MCB DX3 1 Pole 80A Curve C is a reliable miniature circuit breaker designed for residential and small commercial electrical panels. With a breaking capacity of 25kA and IP20 protection, it ensures safety and efficiency in low voltage installations. Ideal for qualified electricians, this circuit breaker features a red/green mechanical indicator for easy status monitoring and is compatible with both copper and aluminum cables.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB DX3 1 Pole 80A Curve C | 25kA Breaking Capacity | IP20 Rated | @EA of 1 | by Legrand
Brand: Legrand
SKU: 409762
Alternatively Known As: Miniature Circuit Breaker 1P 80A C Curve, Legrand DX3 MCB, 1 Pole Circuit Breaker 80 Amp
Technical Specifications
- Rated current: 80 A
- Rated voltage: 230 V AC
- Rated insulation voltage Ui: 500 V
- Rated impulse withstand voltage Uimp: 6 kV
- Rated short-circuit breaking capacity Icu: 25 kA at 230 V
- Frequency: 50-60 Hz
- Number of poles: 1
- Release characteristic: Curve C
- Degree of protection: IP20
- Pollution degree: 3
- Connectable conductor cross section multi-wired: 6-50 mm²
- Connectable conductor cross section solid-core: 6-70 mm²
- Operating ambient temperature: -25 to 70 °C
- Storage temperature: -40 to 70 °C
- Degree of impact strength: IK02
- Flush-mounted installation: Yes
- Dimensions (H x L x W): 128mm x 79mm x 27mm
- Weight: 0.2 kg
Key Features
- Breaking capacity of 25kA according to IEC 60947-2
- Tripping threshold between 400A and 800A (C curve)
- Protected against solid bodies larger than 12.5mm (IP20)
- Can be equipped with Legrand DX3 auxiliaries and accessories
- Compatible with copper and aluminium cables with appropriate accessories
- Red/green mechanical indicator for contact status
- Label holder for clear circuit identification
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with local electrical installation rules to ensure safety and proper operation.
Applications
- Residential electrical panels
- Small commercial electrical panels
- Circuit protection in low voltage installations
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Designed with an environmentally conscious process
- Complies with substance-restriction requirements
Warranty Information
Warranty terms as provided by Legrand, typically 1-2 years against manufacturing defects.
Available Now
The Legrand MCB DX3 1 Pole 80A Curve C Miniature Circuit Breaker is available for immediate purchase, ideal for residential and small commercial electrical panel protection.
