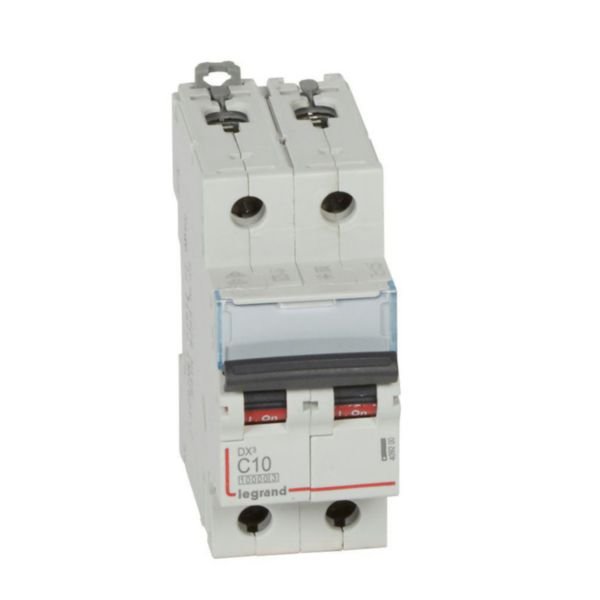

MCB DX3 10000A 2 Pole 10A Curve C | IP20 Protection | Energy Limitation Class 3 | by Legrand
MCB DX3 10000A 2 Pole 10A Curve C is designed for reliable circuit protection in residential and small commercial electrical panels. With a breaking capacity of 10000A and IP20 protection, it ensures safety against solid bodies larger than 12.5mm. Ideal for qualified electricians, this miniature circuit breaker is compatible with Legrand DX3 auxiliaries and features an energy limitation class 3 for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB DX3 10000A 2 Pole 10A Curve C | IP20 Protection | Energy Limitation Class 3 | by Legrand
Brand: Legrand
SKU: 409200
Alternatively Known As: Miniature Circuit Breaker 2P 10A C Curve, Legrand DX3 MCB, 2 Pole Circuit Breaker 10A
Technical Specifications
- Breaking capacity: 10000A according to IEC 60898-1
- Tripping threshold: 50A to 100A (Curve C)
- Rated current: 10A
- Rated voltage: 400V AC
- Rated insulation voltage Ui: 500V
- Rated impulse withstand voltage Uimp: 4kV
- Short-circuit breaking capacity Icn at 230V: 16kA
- Short-circuit breaking capacity Icn at 400V: 10kA
- Short-circuit breaking capacity Icu at 230V: 32kA
- Short-circuit breaking capacity Icu at 400V: 16kA
- Frequency: 50-60Hz
- Current limiting class: 3
- Degree of protection: IP20
- Pollution degree: 2
- Connectable conductor cross section multi-wired: 1.5-25 mm²
- Connectable conductor cross section solid-core: 1.5-35 mm²
- Mounting method: DIN rail
- Connection type: Screwed terminal
- Operating ambient temperature: -25 to 70 °C
- Storage temperature: -40 to 70 °C
- Colour: Grey (RAL 7035)
- Degree of impact strength: IK02
- Flush-mounted installation: Yes
- Concurrently switching neutral conductor: No
- Dimensions (H x L x W): 95mm x 78mm x 35mm
- Weight: 0.2 kg
Key Features
- Breaking capacity of 10000A according to IEC 60898-1 standard
- Tripping threshold between 50A and 100A (Curve C)
- IP20 protection against solid bodies larger than 12.5mm
- Energy limitation class 3 for let-through energy
- Compatible with Legrand DX3 auxiliaries, RCD add-on modules, and accessories
- Can be connected to aluminium cables with terminal accessory
- Equipped with label holder for clear circuit identification
- On/Off indication on handle with red and green backgrounds
- Fitted with two DIN rail clamps for easy installation and removal
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with local electrical installation rules to ensure safety and proper operation.
Applications
- Residential and small commercial electrical panels
- Circuit protection in household and light commercial installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with an environmentally conscious process
- Halogen-free materials reduce environmental impact
- Energy limitation class 3 reduces let-through energy, enhancing safety and reducing damage
Warranty Information
Warranty terms as per Legrand standard policy; typically covers manufacturing defects for a period of 1-2 years.
Available Now
The Legrand MCB DX3 10000A 2 Pole 10A Curve C Miniature Circuit Breaker is available for immediate purchase, ideal for residential and small commercial electrical panel circuit protection.
