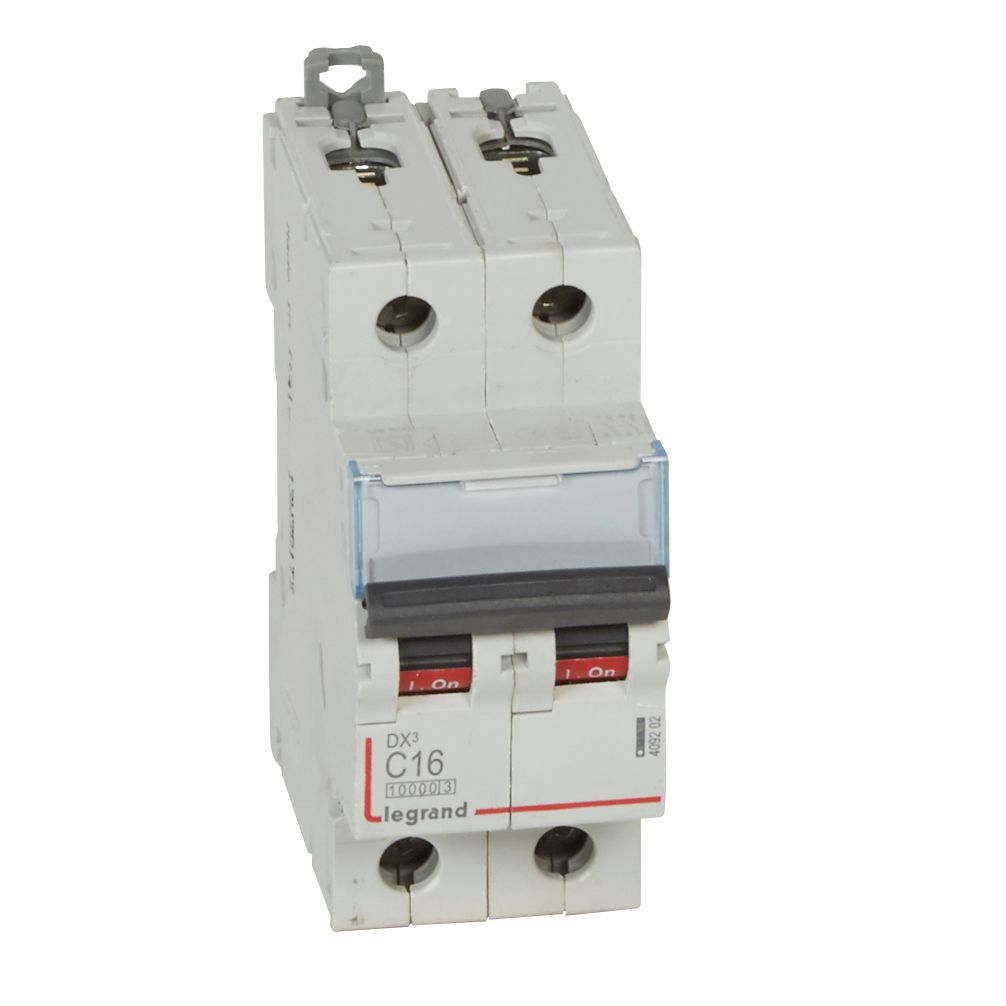

MCB DX3 10000A 2 Pole 16A Curve C | IP20 Protection | Energy Limitation Class 3 | by Legrand
The MCB DX3 10000A 2 Pole 16A Curve C is a reliable miniature circuit breaker designed for residential and small commercial electrical panels. With a breaking capacity of 10 kA and IP20 protection, it ensures safety and efficiency in circuit protection. Ideal for qualified electricians, this breaker features a tripping threshold between 80A and 160A, making it perfect for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated current: 16 A
- Number of poles: 2
- Rated voltage: 400 V AC
- Breaking capacity: 10 kA at 400 V, 16 kA at 230 V
- Rated insulation voltage Ui: 500 V
- Rated impulse withstand voltage Uimp: 4 kV
- Frequency: 50-60 Hz
- Current limiting class: 3
- Degree of protection: IP20
- Connection type: Screwed terminal
- Connectable conductor cross section: 1.5-25 mm² multi-wired, 1.5-35 mm² solid-core
- Mounting method: DIN rail
- Operating temperature range: -25 to 70 °C
- Storage temperature range: -40 to 70 °C
- Degree of impact strength: IK02
- Flush-mounted installation: Yes
- Colour: Grey (RAL 7035)
- Electric supply direction: Top or bottom
- Dimensions (H x L x W): 95mm x 78mm x 35mm
- Weight: 0.2 kg
Key Features
- Breaking capacity of 10000A according to IEC 60898-1 standard
- Tripping threshold between 80A and 160A (C curve)
- IP20 fingerproof protection against solid bodies larger than 12.5mm
- Energy limitation class 3 for let-through energy
- Compatible with Legrand DX3 auxiliaries, RCD add-on modules, and accessories
- Can connect to aluminium cables with terminal accessory
- Equipped with label holder for circuit identification
- On/Off indication on handle with red and green backgrounds
- Fitted with two DIN rail clamps for easy installation and removal
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with local electrical installation rules to ensure safety and proper operation.
Applications
- Residential electrical panels
- Small commercial electrical panels
- Circuit protection in distribution boards
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with an environmentally conscious process
- Halogen-free materials reduce environmental impact
- Energy limitation class 3 reduces let-through energy, enhancing safety and reducing damage
