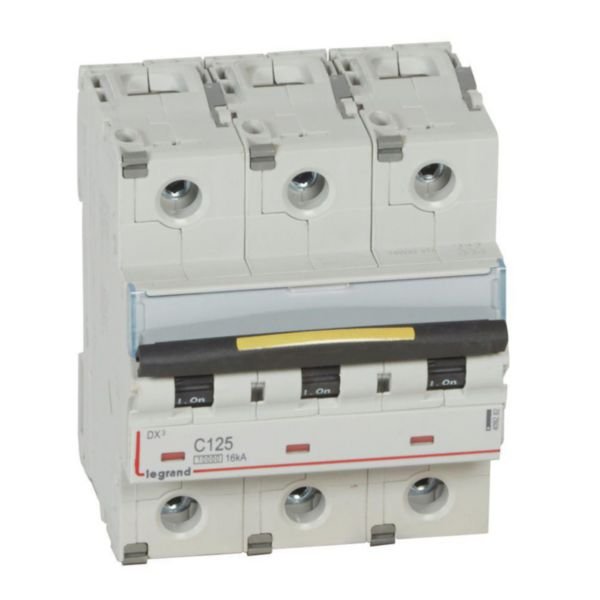

MCB DX3 10000A 3 Pole 125A Curve C | 10kA Breaking Capacity | IP20 Rated | @Each of 1 | by Legrand
The MCB DX3 10000A 3 Pole 125A Curve C is a reliable miniature circuit breaker designed for residential and small commercial electrical panels. With a breaking capacity of 10kA and IP20 protection, it ensures safety and efficiency in low voltage installations. Ideal for qualified electricians, this circuit breaker features a red/green mechanical indicator for easy status monitoring and is compatible with Legrand DX3 auxiliaries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB DX3 10000A 3 Pole 125A Curve C | 10kA Breaking Capacity | IP20 Rated | @Each of 1 | by Legrand
Brand: Legrand
SKU: 409282
Alternatively Known As: Miniature Circuit Breaker 3 Pole 125A C Curve, Legrand DX3 MCB, 3P Circuit Breaker 125 Amp
Technical Specifications
- Rated current: 125 A
- Number of poles: 3
- Rated voltage: 400 V AC
- Rated insulation voltage Ui: 500 V
- Rated impulse withstand voltage Uimp: 4 kV
- Frequency: 50-60 Hz
- Rated short-circuit breaking capacity Icn: 10 kA at 400 V (EN 60898)
- Rated short-circuit breaking capacity Icu: 16 kA at 400 V (IEC 60947-2)
- Tripping characteristic: Curve C
- Degree of protection: IP20
- Pollution degree: 3
- Connectable conductor cross section: multi-wired 6-50 mm², solid-core 6-70 mm²
- Mounting method: DIN rail
- Electric supply direction: top or bottom
- Degree of impact strength: IK02
- Operating ambient temperature: -25 to 70 °C
- Storage temperature: -40 to 70 °C
- Connection type: Screwed terminal
- Dimensions (H x L x W): 95mm x 78mm x 53mm
- Weight: 0.3 kg
Key Features
- Breaking capacity 10,000A according to IEC 60898-1 for household installations
- Breaking capacity 16kA according to IEC 60947-2
- Tripping threshold between 625A and 1250A (C curve between 5 In and 10 In)
- Protected against solid bodies larger than 12.5mm (IP20 fingerproof)
- Can be equipped with Legrand DX3 auxiliaries, RCD add-on modules, and accessories
- Compatible with aluminium cables using terminal accessory
- Red/green mechanical indicator showing open or closed contact status
- Label holder for clear circuit identification
- Halogen free design
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with local electrical installation rules to ensure safety and proper operation.
Applications
- Residential electrical panels
- Small commercial electrical panels
- Circuit protection in low voltage installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with an environmentally conscious process
- Halogen free materials reduce environmental impact
Warranty Information
Standard manufacturer warranty applies; refer to Legrand for specific warranty terms.
Available Now
The Legrand MCB DX3 10000A 3 Pole 125A Curve C Miniature Circuit Breaker is available for immediate purchase, ideal for residential and small commercial electrical panel circuit protection.
