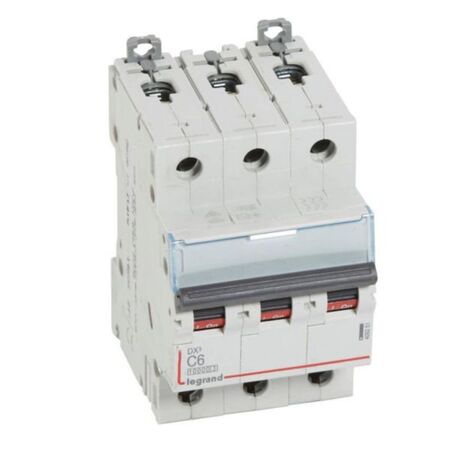

MCB DX3 10000A 3 Pole 6A Curve C | IP20 Protection | Energy Limitation Class 3 | by Legrand
MCB DX3 10000A 3 Pole 6A Curve C is designed for reliable circuit protection in residential and small commercial electrical panels. With a breaking capacity of 10000A and IP20 protection, it ensures safety against solid bodies. Ideal for qualified electricians, this miniature circuit breaker is compatible with Legrand DX3 auxiliaries and features easy installation with DIN rail clamps.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB DX3 10000A 3 Pole 6A Curve C | IP20 Protection | Energy Limitation Class 3 | by Legrand
Brand: Legrand
SKU: 409251
Alternatively Known As: Miniature Circuit Breaker 3 Pole 6A C Curve, Legrand DX3 MCB, 3P MCB 6 Amp C Curve
Technical Specifications
- Rated current: 6 A
- Rated voltage: 400 V AC
- Rated insulation voltage Ui: 500 V
- Rated impulse withstand voltage Uimp: 4 kV
- Rated short-circuit breaking capacity Icn at 230 V: 16 kA
- Rated short-circuit breaking capacity Icn at 400 V: 10 kA
- Rated short-circuit breaking capacity Icu at 230 V: 32 kA
- Rated short-circuit breaking capacity Icu at 400 V: 16 kA
- Frequency: 50-60 Hz
- Current limiting class: 3
- Degree of protection: IP20
- Pollution degree: 2
- Connectable conductor cross section multi-wired: 1.5-25 mm²
- Connectable conductor cross section solid-core: 1.5-35 mm²
- Mounting method: DIN rail
- Colour: Grey (RAL 7035)
- Degree of impact strength: IK02
- Ambient operating temperature: -25 to 70 °C
- Storage temperature: -40 to 70 °C
- Connection type: Screwed terminal
- Flush-mounted installation: Yes
- Concurrently switching neutral conductor: No
- Dimensions (H x L x W): 95mm x 78mm x 53mm
- Weight: 0.3 kg
Key Features
- Breaking capacity of 10000A according to IEC 60898-1 standard
- Tripping threshold between 30A and 60A (C curve between 5 In and 10 In)
- IP20 protection against solid bodies larger than 12.5mm (fingerproof)
- Energy limitation class 3 for let-through energy
- Compatible with Legrand DX3 auxiliaries, RCD add-on modules, and accessories
- Can be connected to aluminium cable with terminal accessory
- Equipped with two DIN rail clamps for easy installation and removal
- Label holder for clear circuit identification
- On and OFF indication on handle with red and green backgrounds
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with installation rules to ensure safety and proper operation.
Applications
- Residential and small commercial electrical panels
- Protection of electrical circuits in household and commercial installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with an environmentally conscious process
- Halogen free materials used
- Complies with substance-restriction requirements
Warranty Information
Warranty terms as per Legrand standard policy; typically covers manufacturing defects for a specified period.
Available Now
The Legrand MCB DX3 10000A 3 Pole 6A Curve C Miniature Circuit Breaker is available for immediate purchase, ideal for residential and small commercial electrical panel protection.
