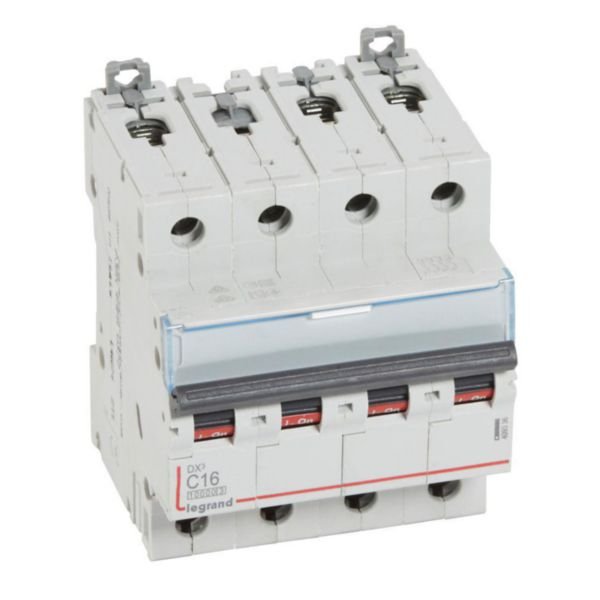

MCB DX3 10000A 4 Pole 16A Curve C | 10kA Breaking Capacity | IP20 Protection | @EA of 1 | by Legrand
The MCB DX3 10000A 4 Pole 16A Curve C is a reliable miniature circuit breaker designed for residential and small commercial electrical panels. With a breaking capacity of 10kA and IP20 protection, it ensures safety and efficiency in circuit protection. Ideal for homes and small businesses, this circuit breaker is compatible with Legrand DX3 auxiliaries and features an easy installation process.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB DX3 10000A 4 Pole 16A Curve C | 10kA Breaking Capacity | IP20 Protection | @EA of 1 | by Legrand
Brand: Legrand
SKU: 409336
Alternatively Known As: Miniature Circuit Breaker 4P 16A C Curve, Legrand DX3 MCB 16 Amp 4 Pole, 4 Pole Circuit Breaker 16A C Curve
Technical Specifications
- Rated current: 16 A
- Number of poles: 4
- Rated voltage: 400 V AC
- Breaking capacity: 10 kA at 400 V (IEC 60898-1)
- Impulse withstand voltage: 4 kV
- Rated insulation voltage Ui: 500 V
- Rated short-circuit breaking capacity Icn: 16 kA at 400 V
- Rated short-circuit breaking capacity Icu: 16 kA at 400 V (IEC 60947-2)
- Frequency: 50-60 Hz
- Current limiting class: 3
- Degree of protection: IP20
- Pollution degree: 2
- Connection type: Screwed terminal
- Connectable conductor cross section: 1.5-35 mm² solid-core, 1.5-25 mm² multi-wired
- Mounting method: DIN rail
- Operating ambient temperature: -25 to 70 °C
- Storage temperature: -40 to 70 °C
- Colour: Grey (RAL 7035)
- Degree of impact strength: IK02
- Flush-mounted installation: Yes
- Concurrently switching neutral conductor: Yes
- Dimensions (H x L x W): 95mm x 78mm x 71mm
- Weight: 0.3 kg
Key Features
- Breaking capacity of 10,000A according to IEC 60898-1 standard
- Tripping threshold between 80A and 160A (C curve)
- IP20 protection against solid bodies larger than 12.5mm
- Energy limitation class 3 for let-through energy
- Compatible with Legrand DX3 auxiliaries, RCD add-on modules, and accessories
- Can be connected to aluminium cables with terminal accessory
- Equipped with label holder for clear circuit identification
- On/Off indication on handle with red and green backgrounds
- Fitted with two DIN rail clamps for easy installation and removal
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with local electrical installation rules to ensure safety and warranty validity.
Applications
- Residential and small commercial electrical panels
- Protection of electrical circuits in homes and small businesses
- Circuit protection in distribution boards
Standards & Compliance
- AS/NZS 60898 – Electrical accessories - Circuit-breakers for overcurrent protection for household and similar installations
Environmental Benefits
- Designed with an environmentally conscious process
- Halogen-free materials reduce environmental impact
- Energy limitation class 3 reduces let-through energy, enhancing safety and reducing damage
Warranty Information
Warranty terms as provided by Legrand, typically covering manufacturing defects. Installation by qualified personnel recommended to maintain warranty validity.
Available Now
The Legrand MCB DX3 10000A 4 Pole 16A Curve C Miniature Circuit Breaker is available for immediate purchase, ideal for residential and small commercial electrical panel protection.
