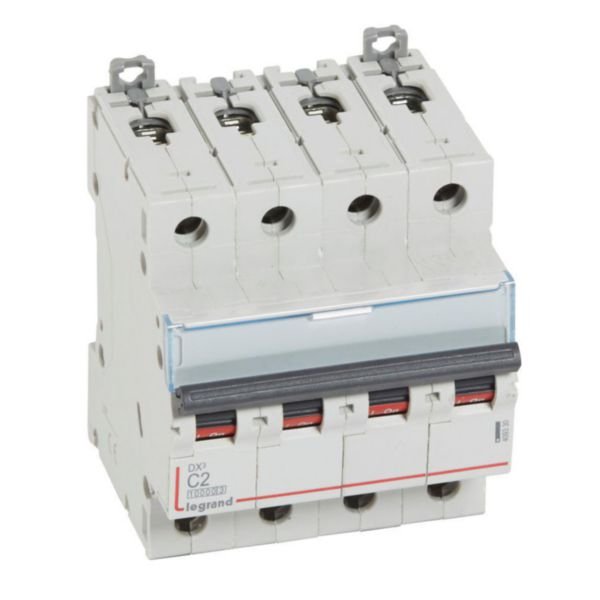

MCB DX3 10000A 4 Pole 2A Curve C | IP20 Rated | 10kA Breaking Capacity | by Legrand
MCB DX3 10000A 4 Pole 2A Curve C is designed for reliable circuit protection in residential and small commercial electrical panels. With a breaking capacity of 10kA and IP20 rating, it ensures safety and compliance with AS/NZS 3000 standards. Ideal for qualified electricians, this miniature circuit breaker features a C curve characteristic for optimal performance in household installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB DX3 10000A 4 Pole 2A Curve C | IP20 Rated | 10kA Breaking Capacity | by Legrand
Brand: Legrand
SKU: 409330
Alternatively Known As: Miniature Circuit Breaker 4P 2A C Curve, Legrand DX3 MCB, 4 Pole Circuit Breaker 2 Amp
Technical Specifications
- Rated current: 2 A
- Number of poles: 4
- Rated voltage: 400 V AC
- Rated insulation voltage Ui: 500 V
- Rated impulse withstand voltage Uimp: 4 kV
- Rated short-circuit breaking capacity Icn at 230 V: 16 kA
- Rated short-circuit breaking capacity Icn at 400 V: 10 kA
- Rated short-circuit breaking capacity Icu at 230 V: 32 kA
- Rated short-circuit breaking capacity Icu at 400 V: 16 kA
- Frequency: 50-60 Hz
- Current limiting class: 3
- Degree of protection: IP20
- Pollution degree: 2
- Connection type: Screwed terminal
- Connectable conductor cross section multi-wired: 1.5-25 mm²
- Connectable conductor cross section solid-core: 1.5-35 mm²
- Operating ambient temperature: -25 to 70 °C
- Storage temperature: -40 to 70 °C
- Mounting method: DIN rail
- Degree of impact strength: IK02
- Colour: Grey (RAL 7035)
- Flush-mounted installation: Yes
- Concurrently switching neutral conductor: Yes
- Dimensions (H x L x W): 95mm x 78mm x 71mm
- Weight: 0.3 kg
Key Features
- Breaking capacity of 10000A according to IEC 60898-1 standard
- Tripping threshold between 10A and 20A with C curve characteristic
- Protected against solid bodies larger than 12.5mm (IP20 rated)
- Maximum energy limitation class 3 for let-through energy
- Compatible with Legrand DX3 auxiliaries, RCD add-on modules, and accessories
- Can be connected to aluminium cables with terminal accessory
- Equipped with label holder for clear circuit identification
- On/Off indication on handle with red and green backgrounds
- Fitted with two DIN rail clamps for easy installation and removal
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with local electrical installation rules to ensure safety and proper operation.
Applications
- Residential and small commercial electrical panels
- Circuit protection in household and light commercial installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with an environmentally conscious process complying with substance-restriction requirements
- Halogen-free materials reduce environmental impact
Warranty Information
Warranty terms as per Legrand standard policy; typically covers manufacturing defects for a period of 1-2 years.
Available Now
Legrand MCB DX3 10000A 4 Pole 2A Curve C Miniature Circuit Breaker is available for immediate purchase, ideal for residential and small commercial electrical panel circuit protection.
