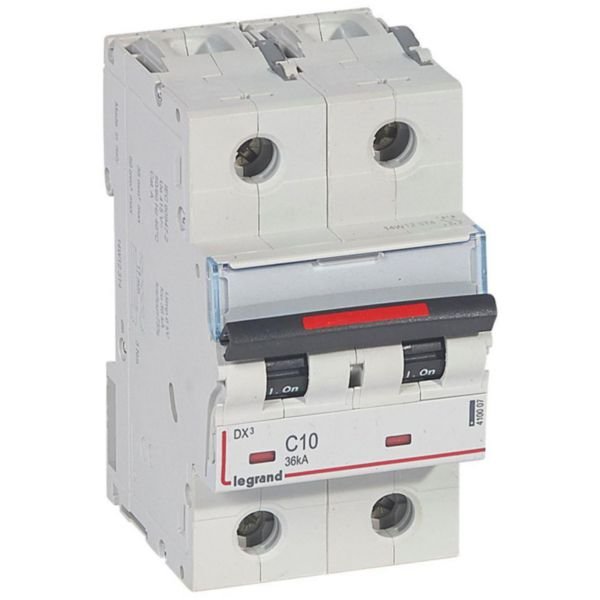

MCB DX3 2 Pole 10A Curve C | 36kA Breaking Capacity | IP20 Rated | @EA of 1 | by Legrand
MCB DX3 2 Pole 10A Curve C is designed for reliable circuit protection in residential and small commercial electrical panels. With a breaking capacity of 36kA and an IP20 rating, it ensures safety against solid bodies larger than 12.5mm. Ideal for qualified electricians, this miniature circuit breaker is compatible with Legrand DX3 auxiliaries and offers a halogen-free design for environmental benefits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB DX3 2 Pole 10A Curve C | 36kA Breaking Capacity | IP20 Rated | @EA of 1 | by Legrand
Brand: Legrand
SKU: 410007
Alternatively Known As: Miniature Circuit Breaker 2P 10A C Curve, Legrand DX3 MCB 10 Amp 2 Pole, 2 Pole Circuit Breaker 10A C Curve
Technical Specifications
- Rated current: 10 A
- Number of poles: 2
- Rated voltage: 400 V AC
- Rated insulation voltage Ui: 500 V
- Rated impulse withstand voltage Uimp: 6 kV
- Rated short-circuit breaking capacity Icu: 36 kA at 400 V, 72 kA at 230 V
- Frequency: 50-60 Hz
- Degree of protection: IP20
- Pollution degree: 3
- Ambient operating temperature: -25 to 70 °C
- Storage temperature: -40 to 70 °C
- Connection type: Screwed terminal, cable
- Mounting method: DIN rail
- Width in modular spacings: 3
- Degree of impact strength: IK02
- Electric supply direction: Top or bottom
- Connectable conductor cross section: Multi-wired 1.5-35 mm², Solid-core 1.5-50 mm²
- Dimensions (H x L x W): 128mm x 79mm x 53mm
- Weight: 0.2 kg
Key Features
- Breaking capacity 36kA according to IEC 60947-2
- Tripping threshold between 50A and 100A (C curve between 5 In and 10 In)
- Protected against solid bodies larger than 12.5mm (fingerproof) with IP20 rating
- Can be equipped with Legrand DX3 auxiliaries, RCD add-on modules and accessories
- Compatible with aluminium cables using terminal accessory
- Red/green mechanical indicator showing open or closed contact status
- Label holder for clear circuit identification
- Halogen free design
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with local electrical installation standards to ensure safety and proper operation.
Applications
- Residential electrical panels
- Small commercial electrical panels
- Circuit protection in distribution boards
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with halogen-free materials to reduce environmental impact
- Complies with substance-restriction requirements ensuring safer disposal and recycling
- Manufactured with an environmentally conscious process
Warranty Information
Warranty terms as per Legrand standard policy; typically 1-2 years against manufacturing defects.
Available Now
The Legrand MCB DX3 2 Pole 10A Curve C Miniature Circuit Breaker is available for immediate purchase, ideal for residential and small commercial electrical panel protection.
