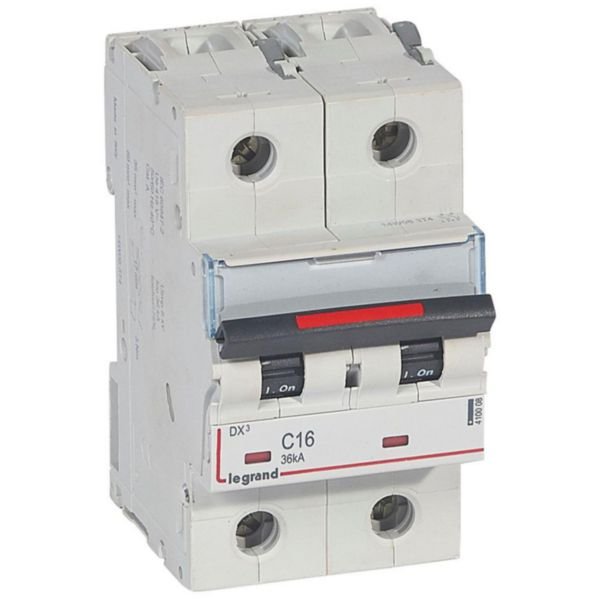

MCB DX3 2 Pole 16A Curve C | 36kA Breaking Capacity | IP20 Rated | by Legrand
The MCB DX3 2 Pole 16A Curve C is a reliable miniature circuit breaker designed for residential and small commercial electrical panels. With a breaking capacity of 36kA and IP20 protection, it ensures optimal circuit protection against overcurrents. Ideal for safe installations, this circuit breaker is compatible with Legrand DX3 auxiliaries and accessories, making it a versatile choice for your electrical needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB DX3 2 Pole 16A Curve C | 36kA Breaking Capacity | IP20 Rated | by Legrand
Brand: Legrand
SKU: 410008
Alternatively Known As: Miniature Circuit Breaker 2P 16A C Curve, Legrand DX3 MCB, 2 Pole Circuit Breaker 16 Amp
Technical Specifications
- Rated current: 16 A
- Number of poles: 2
- Rated voltage: 400 V AC
- Breaking capacity: 36 kA at 400 V
- Tripping curve: C
- Rated insulation voltage Ui: 500 V
- Rated impulse withstand voltage Uimp: 6 kV
- Frequency: 50-60 Hz
- Degree of protection: IP20
- Pollution degree: 3
- Connectable conductor cross section multi-wired: 1.5-35 mm²
- Connectable conductor cross section solid-core: 1.5-50 mm²
- Mounting method: DIN rail
- Degree of impact strength: IK02
- Operating ambient temperature: -25 to 70 °C
- Storage temperature: -40 to 70 °C
- Electric supply direction: Top or bottom
- Connection type: Screwed terminal, cable
- Dimensions (H x L x W): 127.5mm x 79.2mm x 53.4mm
- Weight: 0.2 kg
Key Features
- Breaking capacity 36kA according to IEC 60947-2
- Tripping threshold between 80A and 160A (C curve)
- Protected against solid bodies larger than 12.5mm (IP20)
- Can be equipped with Legrand DX3 auxiliaries and accessories
- Compatible with aluminium cables using terminal accessory
- Red/green mechanical indicator for contact status
- Label holder for clear circuit identification
- Halogen free design
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with local electrical installation standards to ensure safety and proper operation.
Applications
- Residential and small commercial electrical panels
- Circuit protection in distribution boards
- Overcurrent protection for electrical circuits
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with halogen-free materials to reduce environmental impact
- Complies with substance-restriction requirements for safer disposal
- Manufactured with environmentally conscious processes
Warranty Information
Warranty terms as per Legrand standard policy; typically 1-2 years against manufacturing defects.
Available Now
The Legrand MCB DX3 2 Pole 16A Curve C Miniature Circuit Breaker is available for immediate purchase, ideal for residential and small commercial electrical panel protection.
