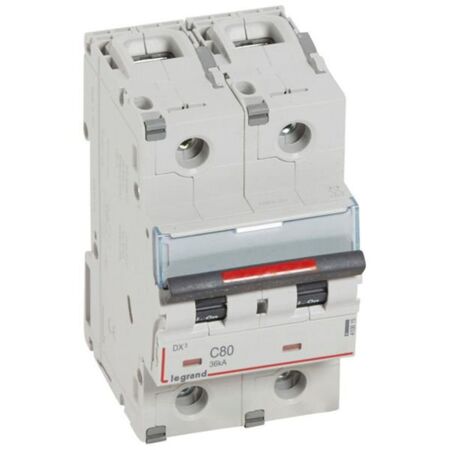

MCB DX3 2 Pole 80A Curve C | 36kA Breaking Capacity | IP20 Rated | @EA of 1 | by Legrand
The MCB DX3 2 Pole 80A Curve C is a reliable miniature circuit breaker designed for residential and small commercial electrical panels. With a breaking capacity of 36kA and IP20 protection, it ensures safety and efficiency in circuit protection. Ideal for qualified electricians, this breaker features a red/green mechanical indicator for contact status and is compatible with copper and aluminum cables.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB DX3 2 Pole 80A Curve C | 36kA Breaking Capacity | IP20 Rated | @EA of 1 | by Legrand
Brand: Legrand
SKU: 410015
Alternatively Known As: Miniature Circuit Breaker 2P 80A C Curve, Legrand DX3 MCB 80 Amp, 2 Pole Circuit Breaker
Technical Specifications
- Rated current: 80 A
- Rated voltage: 400 V AC
- Rated insulation voltage Ui: 500 V
- Rated impulse withstand voltage Uimp: 6 kV
- Frequency: 50-60 Hz
- Rated short-circuit breaking capacity Icu: 36 kA at 400 V
- Number of poles: 2
- Release characteristic: Curve C
- Degree of protection: IP20
- Pollution degree: 3
- Connectable conductor cross section multi-wired: 6-50 mm²
- Connectable conductor cross section solid-core: 6-70 mm²
- Mounting method: DIN rail
- Electric supply direction: Top or bottom
- Degree of impact strength: IK02
- Operating ambient temperature: -25 to 70 °C
- Storage temperature: -40 to 70 °C
- Dimensions (H x L x W): 127.5mm x 79.2mm x 53.4mm
- Weight: 0.3 kg
Key Features
- Breaking capacity of 36kA according to IEC 60947-2
- Tripping threshold between 400A and 800A (C curve)
- Protected against solid bodies larger than 12.5mm (IP20)
- Can be equipped with Legrand DX3 auxiliaries and accessories
- Compatible with copper and aluminium cables with accessories
- Red/green mechanical indicator for contact status
- Label holder for clear circuit identification
- Halogen free design
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with local electrical installation rules to ensure safety and proper operation.
Applications
- Residential electrical panels
- Small commercial electrical panels
- Circuit protection in distribution boards
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Designed with an environmentally conscious process
- Halogen free materials reduce environmental impact
- Complies with substance-restriction requirements
Warranty Information
Warranty terms as per Legrand standard policy; typically 2 years against manufacturing defects.
Available Now
The Legrand MCB DX3 2 Pole 80A Curve C Miniature Circuit Breaker is available for immediate purchase, ideal for residential and small commercial electrical panel protection.
