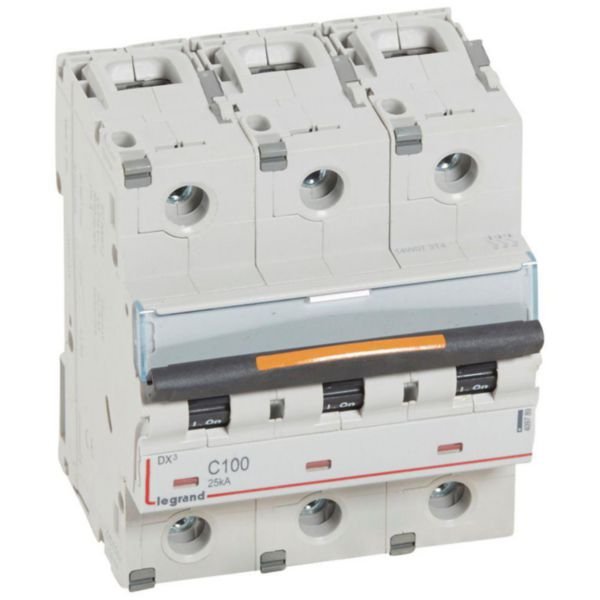

MCB DX3 3 Pole 100A Curve C | 25kA Breaking Capacity | IP20 Protection | @EA of 1 | by Legrand
The MCB DX3 3 Pole 100A Curve C is a reliable miniature circuit breaker designed for residential and small commercial electrical panels. With a breaking capacity of 25kA and IP20 protection, it safeguards circuits against overloads and short circuits. Ideal for professional installations, this circuit breaker ensures safety and compliance with AS/NZS 60950 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB DX3 3 Pole 100A Curve C | 25kA Breaking Capacity | IP20 Protection | @EA of 1 | by Legrand
Brand: Legrand
SKU: 409789
Alternatively Known As: Miniature Circuit Breaker 3P 100A C Curve, Legrand DX3 MCB 3 Pole 100 Amp, 3 Pole Circuit Breaker 100A C Curve
Technical Specifications
- Rated current: 100 A
- Rated voltage: 400 V AC
- Rated insulation voltage Ui: 500 V
- Rated impulse withstand voltage Uimp: 6 kV
- Rated short-circuit breaking capacity Icu: 25 kA at 400 V
- Frequency: 50-60 Hz
- Number of poles: 3
- Release characteristic: Curve C
- Degree of protection: IP20
- Pollution degree: 3
- Connectable conductor cross section multi-wired: 6-50 mm²
- Connectable conductor cross section solid-core: 6-70 mm²
- Mounting method: DIN rail
- Electric supply direction: Top or bottom
- Degree of impact strength: IK02
- Operating ambient temperature: -25 to 70 °C
- Storage temperature: -40 to 70 °C
- Colour: Grey (RAL 7035)
- Connection type: Screwed terminal, Cable
- Dimensions (H x L x W): 128mm x 79mm x 80mm
- Weight: 0.5 kg
Key Features
- Breaking capacity 25kA according to IEC 60947-2
- Tripping threshold between 500A and 1000A (C curve)
- IP20 protection against solid bodies larger than 12.5mm (fingerproof)
- Equipped with red/green mechanical indicator for contact status
- Label holder for clear circuit identification
- Compatible with Legrand DX3 auxiliaries, RCD add-on modules, and accessories
- Can be connected to aluminium cable with terminal accessory
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with installation rules to ensure safety and proper operation.
Applications
- Residential and small commercial electrical panels
- Circuit protection in distribution boards
- Protection of electrical circuits against overload and short circuits
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Designed with an environmentally conscious process
- Halogen-free materials reduce environmental impact
- Complies with substance-restriction requirements
Warranty Information
Warranty terms as per Legrand standard policy; typically 1-2 years against manufacturing defects.
Available Now
The Legrand MCB DX3 3 Pole 100A Curve C Miniature Circuit Breaker is available for immediate purchase, ideal for residential and small commercial electrical panel protection.
