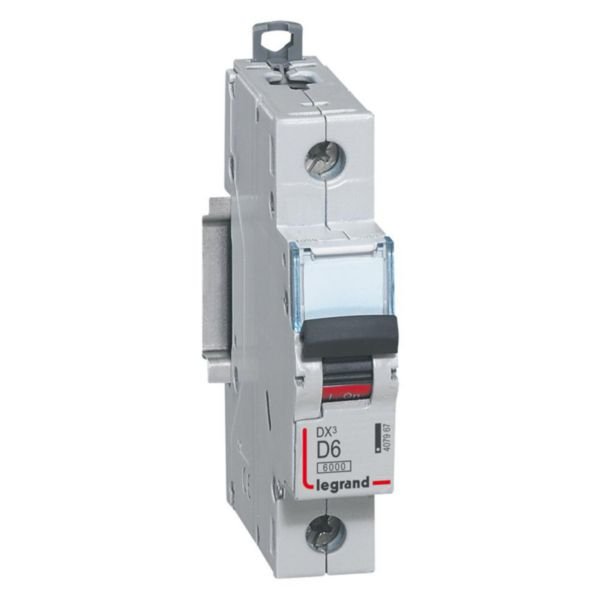

MCB DX3 6000A 1 Pole 6A Curve D | 6000A Breaking Capacity | IP20 Protection | @EA of 1 | by Legrand
The MCB DX3 6000A 1 Pole 6A Curve D is a reliable miniature circuit breaker designed for residential and small commercial electrical panels. With a breaking capacity of 6000A and IP20 protection, it safeguards circuits from overloads and short circuits. Ideal for use by qualified electricians, this circuit breaker ensures safety and compliance with local electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB DX3 6000A 1 Pole 6A Curve D | 6000A Breaking Capacity | IP20 Protection | @EA of 1 | by Legrand
Brand: Legrand
SKU: 407967
Alternatively Known As: Miniature Circuit Breaker 6A D Curve, Legrand DX3 MCB 1 Pole 6A, 6kA Circuit Breaker, Residential Circuit Breaker
Technical Specifications
- Rated current: 6 A
- Rated voltage: 230 V AC
- Breaking capacity: 6000 A (IEC 60898-1)
- Tripping curve: D (trip threshold 10-14 times rated current)
- Rated insulation voltage Ui: 500 V
- Rated impulse withstand voltage Uimp: 4 kV
- Rated short-circuit breaking capacity Icn: 6 kA
- Rated short-circuit breaking capacity Icu: 10 kA (IEC 60947-2)
- Frequency: 50-60 Hz
- Number of poles: 1
- Degree of protection: IP20
- Pollution degree: 2
- Connectable conductor cross section: 1.5-25 mm² multi-wired, 1.5-35 mm² solid-core
- Mounting method: DIN rail
- Operating ambient temperature: -25 to 70 °C
- Storage temperature: -40 to 70 °C
- Connection type: Screwed terminal
- Color: Grey (RAL 7035)
- Halogen free: Yes
- Degree of impact strength: IK02
- Dimensions (H x L x W): 95mm x 78mm x 18mm
- Weight: 0.1 kg
Key Features
- Breaking capacity of 6000A according to IEC 60898-1 standard
- Tripping threshold between 60A and 84A (D curve)
- IP20 fingerproof protection against solid bodies larger than 12.5mm
- Compatible with Legrand DX3 auxiliaries, RCD add-on modules, and accessories
- Can be connected to copper or aluminium cables with appropriate accessories
- Equipped with two DIN rail clamps for easy installation and removal
- Label holder for clear circuit identification
- On/Off indication on handle with red and green backgrounds
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with local electrical installation standards to ensure safety and proper operation.
Applications
- Residential and small commercial electrical panels
- Protection of electrical circuits from overload and short circuits
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with an environmentally conscious process
- Halogen-free materials reduce environmental impact
- Complies with substance-restriction requirements
Warranty Information
Warranty terms as per Legrand standard product warranty policy. Installation by qualified personnel recommended to maintain warranty validity.
Available Now
The Legrand MCB DX3 6000A 1 Pole 6A Curve D Miniature Circuit Breaker is available for immediate purchase, ideal for residential and small commercial electrical panel protection.
