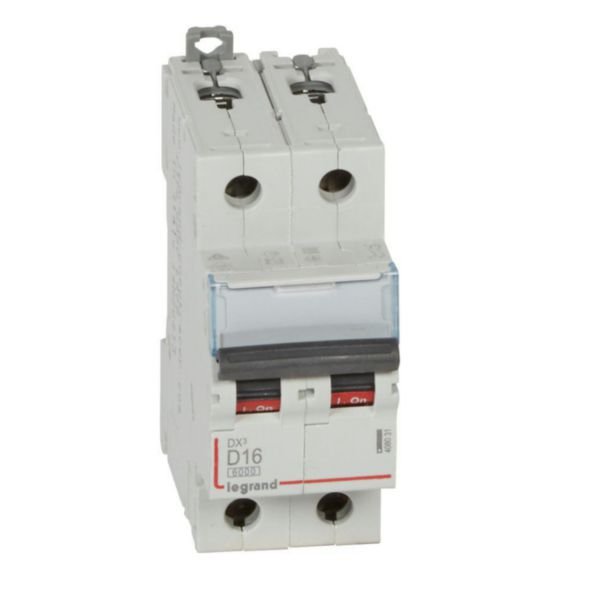

MCB DX3 6000A 2 Pole 16A Curve D | 6kA Breaking Capacity | IP20 Protection | @EA of 1 | by Legrand
The MCB DX3 6000A 2 Pole 16A Curve D is a reliable miniature circuit breaker designed for residential and small commercial electrical panels. With a breaking capacity of 6kA and IP20 protection, it safeguards circuits from overloads and short circuits. Ideal for qualified electricians, this breaker ensures safety and compliance with local electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB DX3 6000A 2 Pole 16A Curve D | 6kA Breaking Capacity | IP20 Protection | @EA of 1 | by Legrand
Brand: Legrand
SKU: 408031
Alternatively Known As: Miniature Circuit Breaker 2P 16A D Curve, Legrand DX3 MCB 16 Amp, 2 Pole Circuit Breaker 6kA
Technical Specifications
- Rated current: 16 A
- Number of poles: 2
- Rated voltage: 400 V AC
- Rated insulation voltage Ui: 500 V
- Rated impulse withstand voltage Uimp: 4 kV
- Rated short-circuit breaking capacity Icn: 6 kA at 400 V (EN 60898)
- Rated short-circuit breaking capacity Icu: 25 kA at 230 V and 10 kA at 400 V (IEC 60947-2)
- Frequency: 50-60 Hz
- Pollution degree: 2
- Degree of protection: IP20
- Degree of impact strength: IK02
- Operating ambient temperature: -25 to 70 °C
- Storage temperature: -40 to 70 °C
- Connectable conductor cross section: multi-wired 1.5-25 mm², solid-core 1.5-35 mm²
- Electric supply direction: top or bottom
- Mounting: DIN rail
- Release characteristic: D curve
- Dimensions (H x L x W): 94.8mm x 77.8mm x 35.4mm
- Weight: 0.2 kg
Key Features
- Breaking capacity of 6000A according to IEC 60898-1 standard
- Tripping threshold between 160A and 224A (D curve)
- IP20 protection against solid bodies larger than 12.5mm
- Equipped with label holder for clear circuit identification
- On/Off indication on handle with red and green backgrounds
- Can be supplied by copper cable, prong busbar, fork busbar, or Legrand HX3 plug busbar
- Compatible with Legrand DX3 auxiliaries, RCD add-on modules, and accessories
- Halogen free design
- Screwed terminal connection
- Mounting method: DIN rail
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with local electrical installation standards to ensure safety and proper operation.
Applications
- Residential and small commercial electrical panels
- Protection of electrical circuits from overload and short circuits
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with halogen-free materials to reduce environmental impact
- Complies with substance-restriction requirements ensuring environmentally conscious manufacturing
Warranty Information
Warranty terms as provided by Legrand, typically covering manufacturing defects. Installation by qualified personnel recommended to maintain warranty validity.
Available Now
The Legrand MCB DX3 6000A 2 Pole 16A Curve D Miniature Circuit Breaker is available for immediate purchase, ideal for residential and small commercial electrical panel protection.
