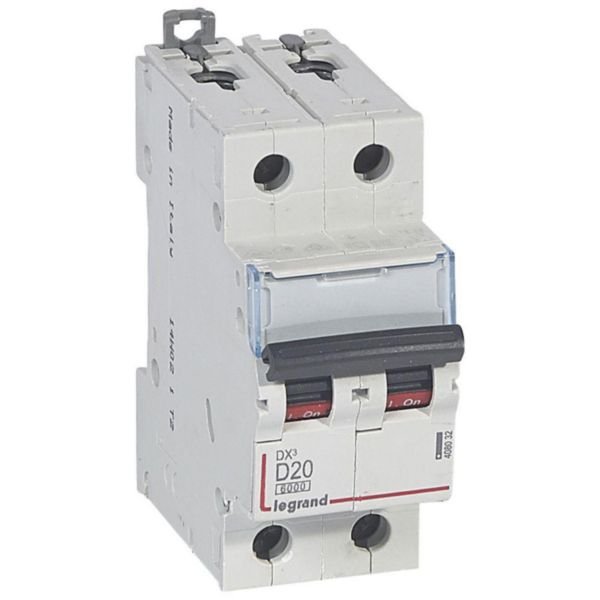

MCB DX3 6000A 2 Pole 20A Curve D | 6000A Breaking Capacity | IP20 Protection | @EA of 1 | by Legrand
The MCB DX3 6000A 2 Pole 20A Curve D is a reliable miniature circuit breaker designed for residential and small commercial electrical panels. With a breaking capacity of 6000A and IP20 protection, it ensures safety and compliance with local electrical standards. Ideal for circuit protection, this breaker features a tripping threshold between 200A and 280A, making it perfect for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB DX3 6000A 2 Pole 20A Curve D | 6000A Breaking Capacity | IP20 Protection | @EA of 1 | by Legrand
Brand: Legrand
SKU: 408032
Alternatively Known As: Miniature Circuit Breaker 2P 20A D Curve, Legrand DX3 MCB 20 Amp, 2 Pole Circuit Breaker 20A
Technical Specifications
- Breaking capacity: 6000A according to IEC 60898-1
- Tripping threshold: 200A to 280A (D curve between 10 In and 14 In)
- Rated current: 20 A
- Rated voltage: 400 V AC
- Rated insulation voltage Ui: 500 V
- Rated impulse withstand voltage Uimp: 4 kV
- Rated short-circuit breaking capacity Icn: 6 kA at 400 V
- Rated short-circuit breaking capacity Icu: 25 kA at 230 V, 10 kA at 400 V
- Frequency: 50-60 Hz
- Degree of protection: IP20
- Pollution degree: 2
- Connectable conductor cross section: multi-wired 1.5-25 mm², solid-core 1.5-35 mm²
- Mounting method: DIN rail
- Connection type: Screwed terminal
- Ambient operating temperature: -25 to 70 °C
- Storage temperature: -40 to 70 °C
- Colour: Grey (RAL 7035)
- Degree of impact strength: IK02
- Halogen free: Yes
- Dimensions (H x L x W): 95mm x 78mm x 36mm
- Weight: 0.15 kg
Key Features
- Breaking capacity of 6000A according to IEC 60898-1 standard
- Tripping threshold between 200A and 280A (D curve)
- IP20 protection against solid bodies larger than 12.5mm (fingerproof)
- Equipped with label holder for clear circuit identification
- On/Off indication on handle with red and green backgrounds
- Compatible with Legrand DX3 auxiliaries, RCD add-on modules, and accessories
- Can be connected to aluminium cable with terminal accessory
- Fitted with two DIN rail clamps for easy installation and removal
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with local electrical installation rules to ensure safety and proper operation.
Applications
- Residential and small commercial electrical panels
- Circuit protection in household and light commercial installations
Standards & Compliance
- AS/NZS 60898 – Electrical accessories - Circuit-breakers for overcurrent protection for household and similar installations
Environmental Benefits
- Designed with an environmentally conscious process
- Halogen free materials reduce environmental impact
- Complies with substance-restriction requirements
Warranty Information
Warranty terms as per Legrand standard policy; typically 1-2 years against manufacturing defects.
Available Now
The Legrand MCB DX3 6000A 2 Pole 20A Curve D Miniature Circuit Breaker is available for immediate purchase, ideal for residential and small commercial electrical panel protection.
