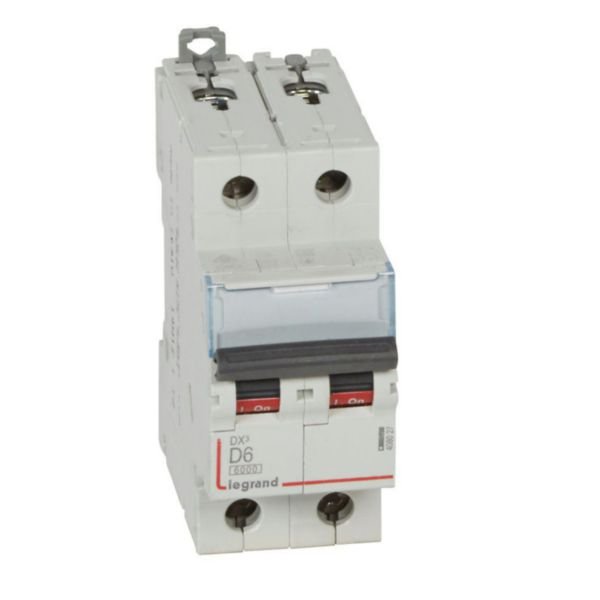

MCB DX3 6000A 2 Pole 6A Curve D | IP20 Rated | 6kA Breaking Capacity | by Legrand
MCB DX3 6000A 2 Pole 6A Curve D is designed for reliable circuit protection in residential and small commercial electrical panels. With a breaking capacity of 6000A and IP20 rating, it ensures safety against overcurrent. Ideal for qualified electricians, this miniature circuit breaker features a halogen-free design and is compatible with Legrand DX3 auxiliaries for enhanced functionality.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB DX3 6000A 2 Pole 6A Curve D | IP20 Rated | 6kA Breaking Capacity | by Legrand
Brand: Legrand
SKU: 408027
Alternatively Known As: Miniature Circuit Breaker 2 Pole 6A D Curve, Legrand DX3 MCB 6A, 2P Circuit Breaker 6 Amp D Curve
Technical Specifications
- Rated current: 6 A
- Number of poles: 2
- Rated voltage: 400 V AC
- Rated insulation voltage Ui: 500 V
- Rated impulse withstand voltage Uimp: 4 kV
- Rated short-circuit breaking capacity Icn: 6 kA at 400 V (EN 60898)
- Rated short-circuit breaking capacity Icu: 25 kA at 230 V, 10 kA at 400 V (IEC 60947-2)
- Frequency: 50-60 Hz
- Degree of protection: IP20
- Pollution degree: 2
- Connection type: Screwed terminal
- Connectable conductor cross section: 1.5-25 mm² multi-wired, 1.5-35 mm² solid-core
- Mounting method: DIN rail
- Operating ambient temperature: -25 to 70 °C
- Storage temperature: -40 to 70 °C
- Degree of impact strength: IK02
- Electric supply direction: Top or bottom
- Dimensions (H x L x W): 95mm x 78mm x 35mm
- Weight: 0.2 kg
Key Features
- Breaking capacity of 6000A according to IEC 60898-1 standard
- Tripping threshold between 60A and 84A (D curve between 10 In and 14 In)
- IP20 rated for protection against solid bodies larger than 12.5mm
- Equipped with label holder for clear circuit identification
- On and OFF indication on handle with red and green backgrounds
- Compatible with Legrand DX3 auxiliaries, RCD add-on modules, and accessories
- Can be connected to aluminium cable with terminal accessory
- Fitted with two DIN rail clamps for easy installation and removal
- Halogen free design
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with local electrical installation rules to ensure safety and proper operation.
Applications
- Residential and small commercial electrical panels
- Protection of electrical circuits in household and commercial installations
Standards & Compliance
- AS/NZS 60898 - Electrical accessories - Circuit-breakers for overcurrent protection for household and similar installations
Environmental Benefits
- Designed with an environmentally conscious process
- Halogen free materials reduce environmental impact
- Complies with substance-restriction requirements
Warranty Information
Warranty terms as per Legrand standard policy; typically covers manufacturing defects for 1-2 years.
Available Now
The Legrand MCB DX3 6000A 2 Pole 6A Curve D Miniature Circuit Breaker is available for immediate purchase, ideal for residential and small commercial electrical panel protection.
