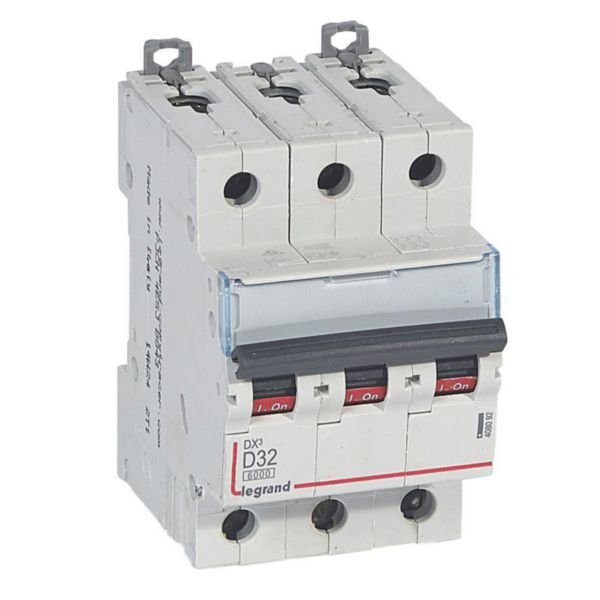

MCB DX3 6000A 3 Pole 32A Curve D | IP20 Protection | 6kA Breaking Capacity | by Legrand
The MCB DX3 6000A 3 Pole 32A Curve D is a reliable miniature circuit breaker designed for residential and small commercial electrical panels. With a breaking capacity of 6000A and IP20 protection, it ensures safety and compliance in electrical circuits. Ideal for protecting your home or business, this circuit breaker features a D curve tripping threshold and is compatible with Legrand DX3 auxiliaries for enhanced functionality.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB DX3 6000A 3 Pole 32A Curve D | IP20 Protection | 6kA Breaking Capacity | by Legrand
Brand: Legrand
SKU: 408092
Alternatively Known As: Miniature Circuit Breaker 3P 32A Curve D, Legrand DX3 MCB 6000A, 3 Pole Circuit Breaker 32 Amp D Curve
Technical Specifications
- Rated current: 32 A
- Number of poles: 3
- Rated voltage: 400 V AC
- Rated insulation voltage Ui: 500 V
- Rated impulse withstand voltage Uimp: 4 kV
- Rated short-circuit breaking capacity Icn: 6 kA at 400 V
- Rated short-circuit breaking capacity Icu: 25 kA at 230 V, 10 kA at 400 V
- Frequency: 50-60 Hz
- Release characteristic: D curve
- Degree of protection: IP20
- Pollution degree: 2
- Connectable conductor cross section: multi-wired 1.5-25 mm², solid-core 1.5-35 mm²
- Mounting method: DIN rail
- Electric supply direction: top or bottom
- Degree of impact strength: IK02
- Operating ambient temperature: -25 to 70 °C
- Storage temperature: -40 to 70 °C
- Connection type: Screwed terminal
- Flush-mounted installation: Yes
- Concurrently switching neutral conductor: No
- Dimensions (H x L x W): 95mm x 78mm x 53mm
- Weight: 0.3 kg
Key Features
- Breaking capacity of 6000A according to IEC 60898-1 standard
- Tripping threshold between 320A and 448A (D curve)
- IP20 fingerproof protection against solid bodies larger than 12.5mm
- Compatible with Legrand DX3 auxiliaries, RCD add-on modules, and accessories
- Can be connected to aluminium cables with terminal accessory
- Equipped with label holder for clear circuit identification
- On/Off indication on handle with red and green backgrounds
- Fitted with two DIN rail clamps for easy installation and removal
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with installation rules to ensure safety and proper operation.
Applications
- Residential and small commercial electrical panels
- Protection of electrical circuits in homes and small businesses
- Circuit protection in distribution boards
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with an environmentally conscious process
- Halogen-free materials reduce environmental impact
- Complies with substance-restriction requirements
Warranty Information
Warranty terms as provided by Legrand, typically covering manufacturing defects. Refer to official Legrand warranty documentation.
Available Now
The Legrand MCB DX3 6000A 3 Pole 32A Curve D Miniature Circuit Breaker is available for immediate purchase, ideal for residential and small commercial electrical panel protection.
