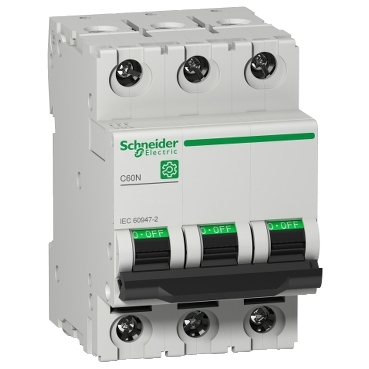

MCB Multi9 C60N 3P 63A C Curve | 10kA Breaking Capacity | by Clipsal
The MCB Multi9 C60N 3P 63A C Curve is a reliable miniature circuit breaker designed for effective overload and short circuit protection. With a high breaking capacity of 10kA and compliance with IEC/EN 60947-2 standards, it's perfect for residential and commercial electrical distribution boards. Its compact design ensures easy installation on DIN rails, making it an ideal choice for electricians and contractors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB Multi9 C60N 3P 63A C Curve | 10kA Breaking Capacity | by Clipsal
Brand: Clipsal
SKU: SCHM9F11363
Alternatively Known As: Clipsal 3 Pole MCB, Multi9 C60N 63A Circuit Breaker, 3P 63A C Curve MCB, Clipsal SCHM9F11363, Clipsal Miniature Circuit Breaker
Technical Specifications
- Type: Miniature Circuit Breaker (MCB)
- Series: Multi9 C60N
- Poles: 3P (Three Pole)
- Rated Current: 63A
- Tripping Curve: C
- Breaking Capacity: 10kA
- Standard: IEC/EN 60947-2
- Rated Voltage: 415V AC
- Mounting: DIN rail
- Terminal Capacity: 25mm²
- Operating Temperature: -25°C to +60°C
- Dimensions (H x L x W): 81mm x 78mm x 54mm
- Weight: 0.45 kg
Key Features
- Three-pole (3P) miniature circuit breaker
- Rated current: 63A
- C curve tripping characteristic for general applications
- High breaking capacity: 10kA
- Complies with IEC/EN 60947-2
- Reliable protection against overloads and short circuits
- Compact modular design for easy installation
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local regulations and standards.
Applications
- Residential and commercial electrical distribution boards
- Industrial control panels
- Protection of lighting and power circuits
- Switchboards in commercial buildings
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables safe and efficient power distribution, reducing risk of electrical fires and equipment damage.
- Long operational life reduces replacement frequency and associated waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal MCB Multi9 C60N 3P 63A C Curve 10kA is available for immediate purchase. Ideal for use in electrical distribution boards and switchboards in residential, commercial, and industrial environments.
