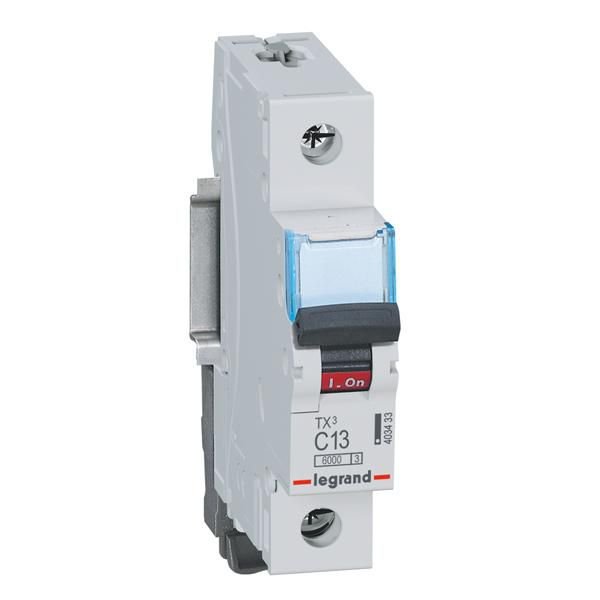

MCB TX3 6000A 1 Pole 13A Curve C | IP20 Rated | DIN Rail Mount | by Legrand
The MCB TX3 6000A 1 Pole 13A Curve C is a reliable miniature circuit breaker designed for residential and small commercial electrical panels. With a breaking capacity of 6000A and IP20 protection, it ensures safety and compliance with IEC 60898-1 standards. Ideal for circuit protection, this device features a tripping characteristic of Curve C, making it perfect for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB TX3 6000A 1 Pole 13A Curve C | IP20 Rated | DIN Rail Mount | by Legrand
Brand: Legrand
SKU: 403433
Alternatively Known As: Miniature Circuit Breaker, MCB 13A C Curve, Legrand TX3 Circuit Breaker, 1 Pole Circuit Breaker
Technical Specifications
- Rated current: 13 A
- Rated voltage: 230/400 VAC
- Breaking capacity: 6000 A according to IEC 60898-1
- Tripping characteristic: Curve C (5 to 10 times In)
- Number of poles: 1
- Rated insulation voltage Ui: 500 V
- Rated impulse withstand voltage Uimp: 4 kV
- Frequency: 50-60 Hz
- Current limiting class: 3
- Degree of protection: IP20
- Pollution degree: 2
- Mounting method: DIN rail
- Connection type: Screwed terminal, busbar, and cable
- Color: Grey (RAL 7035)
- Degree of impact strength: IK02
- Storage temperature range: -40 to 70 °C
- Flush-mounted installation: Yes
- Electric supply direction: Top or bottom
- Dimensions (H x L x W): 88mm x 78mm x 18mm
- Weight: 0.1 kg
Key Features
- Breaking capacity of 6000A according to IEC 60898-1 standard
- Tripping threshold between 65A and 130A (C curve)
- IP20 protection against solid bodies larger than 12.5mm
- Energy limitation class 3 for let-through energy
- Compatible with Legrand DX3 auxiliaries and accessories
- Can connect to aluminium cables with specific terminal accessory
- On/Off indication with red and green backgrounds on handle
- Label holder for clear circuit identification
- Fitted with special DIN rail clamp for easy removal
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with local electrical installation rules to ensure safety and proper operation.
Applications
- Residential electrical panels
- Small commercial electrical panels
- Circuit protection in household installations
Standards & Compliance
- AS/NZS 60898 – Electrical accessories - Circuit-breakers for overcurrent protection for household and similar installations
Environmental Benefits
- Designed with an environmentally conscious process
- Halogen-free materials reduce environmental impact
- Energy limitation class 3 reduces let-through energy, enhancing safety and reducing damage
Warranty Information
Warranty terms as per Legrand standard policy; typically covers manufacturing defects for 1-2 years.
Available Now
The Legrand MCB TX3 6000A 1 Pole 13A Curve C Circuit Breaker is available for immediate purchase, ideal for residential and small commercial electrical panel protection.
