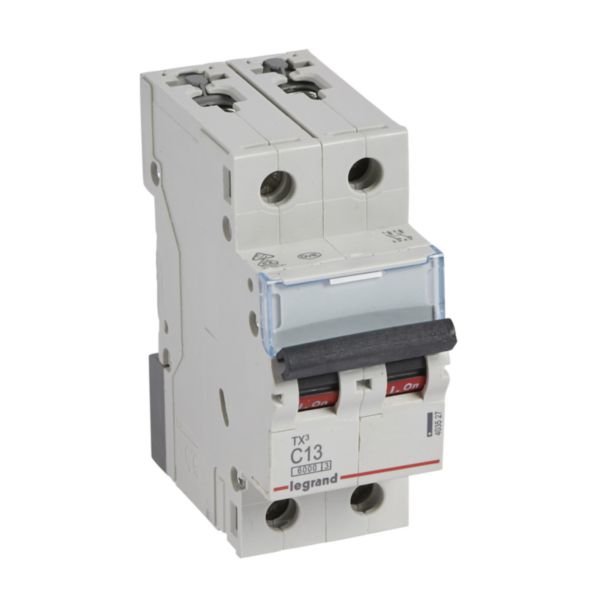

MCB TX3 6000A 2 Pole 13A Curve C | 6000A Breaking Capacity | IP20 Protection | @EA of 1 | by Legrand
MCB TX3 6000A 2 Pole 13A Curve C is designed for reliable circuit protection in residential and small commercial electrical panels. With a breaking capacity of 6000A and IP20 protection, it ensures safety against electrical faults. Ideal for qualified electricians, this miniature circuit breaker features a tripping threshold between 65A and 130A, making it a perfect choice for safeguarding electrical circuits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB TX3 6000A 2 Pole 13A Curve C | 6000A Breaking Capacity | IP20 Protection | @EA of 1 | by Legrand
Brand: Legrand
SKU: 403527
Alternatively Known As: Miniature Circuit Breaker 2P 13A C Curve, Legrand TX3 MCB, 2 Pole Circuit Breaker 13 Amp
Technical Specifications
- Breaking capacity: 6000A according to IEC 60898-1
- Tripping threshold: 65A to 130A (C curve between 5 In and 10 In)
- Rated current: 13 A
- Rated voltage: 400 V AC
- Rated insulation voltage Ui: 500 V
- Rated impulse withstand voltage Uimp: 4 kV
- Short-circuit breaking capacity Icn at 230 V: 10 kA
- Short-circuit breaking capacity Icn at 400 V: 6 kA
- Frequency: 50-60 Hz
- Current limiting class: 3
- Degree of protection: IP20
- Pollution degree: 2
- Mounting method: DIN rail
- Connection type: Screwed terminal, busbar and cable
- Colour: Grey (RAL 7035)
- Degree of impact strength: IK02
- Storage temperature: -40 to 70 °C
- Flush-mounted installation: Yes
- Concurrently switching neutral conductor: No
- Dimensions (H x L x W): 88mm x 77.8mm x 35.4mm
- Weight: 0.2 kg
Key Features
- Breaking capacity of 6000A according to IEC 60898-1 standard
- Tripping threshold between 65A and 130A (C curve)
- IP20 protection against solid bodies larger than 12.5mm
- Energy limitation class 3 for let-through energy
- Compatible with Legrand DX3 auxiliaries and accessories
- Can be connected to aluminium cables with specific terminal accessory
- Equipped with label holder for circuit identification
- On/Off indication on handle with red and green backgrounds
- Fitted with special DIN rail clamp for easy removal
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with installation rules to ensure safety and proper operation.
Applications
- Residential and small commercial electrical panels
- Protection of electrical circuits in homes and small businesses
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with an environmentally conscious process
- Halogen-free materials reduce environmental impact
- Complies with substance-restriction requirements
Warranty Information
Warranty terms as per Legrand standard policy; typically includes coverage against manufacturing defects.
Available Now
Legrand MCB TX3 6000A 2 Pole 13A Curve C is available for immediate purchase, ideal for residential and small commercial electrical panel protection.
