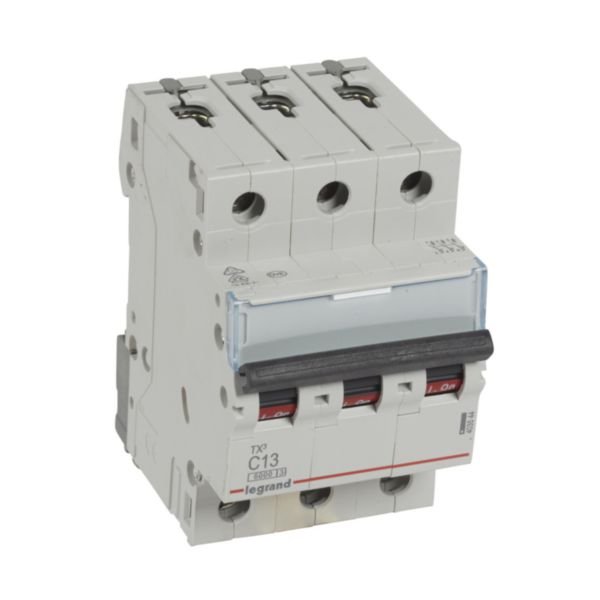

MCB TX3 6000A 3 Pole 13A Curve C | Breaking Capacity 6000A | IP20 Protection | by Legrand
The MCB TX3 6000A 3 Pole 13A Curve C is a reliable miniature circuit breaker designed for residential and small commercial electrical panels. With a breaking capacity of 6000A and IP20 protection, it ensures safety and efficiency in circuit protection. Ideal for qualified electricians, this MCB is compatible with Legrand DX3 auxiliaries and features a clear on/off indication for easy operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB TX3 6000A 3 Pole 13A Curve C | Breaking Capacity 6000A | IP20 Protection | by Legrand
Brand: Legrand
SKU: 403544
Alternatively Known As: Miniature Circuit Breaker 3 Pole 13A C Curve, Legrand TX3 MCB, 3P 13 Amp Circuit Breaker
Technical Specifications
- Rated current: 13 A
- Number of poles: 3
- Rated voltage: 400 V AC
- Rated insulation voltage Ui: 500 V
- Rated impulse withstand voltage Uimp: 4 kV
- Breaking capacity: 6000 A (IEC 60898-1)
- Tripping curve: C (5 to 10 times In)
- Frequency: 50-60 Hz
- Degree of protection: IP20
- Pollution degree: 2
- Connection type: Screwed terminal, busbar, and cable
- Mounting method: DIN rail
- Color: Grey (RAL 7035)
- Impact strength: IK02
- Storage temperature: -40 to 70 °C
- Flush-mounted installation: Yes
- Concurrent switching of neutral conductor: No
- Dimensions (H x L x W): 88mm x 78mm x 53mm
- Weight: 0.3 kg
Key Features
- Breaking capacity of 6000A according to IEC 60898-1 standard
- Tripping threshold between 65A and 130A (C curve)
- IP20 protection against solid bodies larger than 12.5mm
- Energy limitation class 3 for let-through energy
- Compatible with Legrand DX3 auxiliaries and accessories
- Can be connected to aluminium cables with specific terminal accessory
- Equipped with label holder for circuit identification
- On/Off indication on handle with red and green backgrounds
- Fitted with special DIN rail clamp for easy removal
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with local electrical installation rules to ensure safety and proper operation.
Applications
- Residential and small commercial electrical panels
- Protection of electrical circuits in homes and small businesses
- Use in distribution boards for circuit protection
Standards & Compliance
- AS/NZS 60898 – Electrical accessories - Circuit-breakers for overcurrent protection for household and similar installations
Environmental Benefits
- Designed with an environmentally conscious process
- Halogen-free materials reduce environmental impact
- Energy limitation class 3 reduces energy let-through during faults
Warranty Information
Warranty terms as per Legrand standard policy; typically covers manufacturing defects for a period of 1-2 years.
Available Now
The Legrand MCB TX3 6000A 3 Pole 13A Curve C is available for immediate purchase, ideal for residential and small commercial electrical panel protection.
