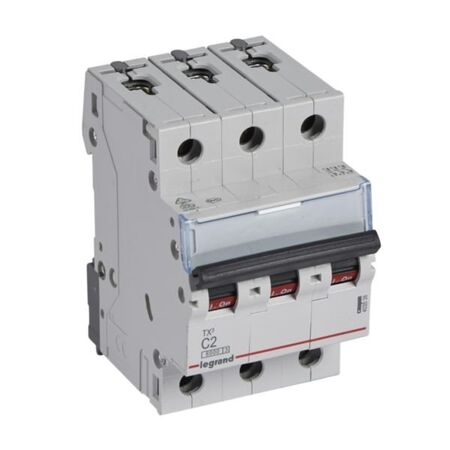

MCB TX3 6000A 3 Pole 2A Curve C | 10kA Breaking Capacity | IP20 Protection | @EA of 1 | by Legrand
MCB TX3 6000A 3 Pole 2A Curve C is designed for reliable circuit protection in residential and small commercial electrical panels. With a breaking capacity of 10kA and IP20 protection, it ensures safety against overloads and short circuits. Ideal for qualified electricians, this miniature circuit breaker is compatible with Legrand DX3 auxiliaries, making it a versatile choice for your electrical needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB TX3 6000A 3 Pole 2A Curve C | 10kA Breaking Capacity | IP20 Protection | @EA of 1 | by Legrand
Brand: Legrand
SKU: 403538
Alternatively Known As: Miniature Circuit Breaker, MCB TX3 3P 2A C Curve, Legrand Circuit Breaker, 3 Pole MCB, 2 Amp Circuit Breaker
Technical Specifications
- Rated current: 2 A
- Number of poles: 3
- Rated voltage: 400 V AC
- Rated insulation voltage Ui: 500 V
- Rated impulse withstand voltage Uimp: 4 kV
- Rated short-circuit breaking capacity Icn: 10 kA at 230 V, 6 kA at 400 V
- Frequency: 50-60 Hz
- Current limiting class: 3
- Degree of protection: IP20
- Pollution degree: 2
- Mounting method: DIN rail
- Connection type: Screwed terminal, busbar and cable
- Colour: Grey (RAL 7035)
- Degree of impact strength: IK02
- Storage temperature range: -40 to 70 °C
- Electric supply direction: Top or bottom
- Dimensions (H x L x W): 88mm x 77.8mm x 53.1mm
- Weight: 0.3 kg
Key Features
- Breaking capacity of 6000A according to IEC 60898-1 standard
- Tripping threshold between 10A and 20A (C curve)
- IP20 protection against solid bodies larger than 12.5mm
- Energy limitation class 3 for let-through energy
- Compatible with Legrand DX3 auxiliaries and accessories
- Can be connected to aluminium cables with specific terminal accessory
- Equipped with label holder for circuit identification
- On/Off indication on handle with red and green backgrounds
- Fitted with special DIN rail clamp for easy removal
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with installation rules to ensure safety and proper operation.
Applications
- Residential and small commercial electrical panels
- Protection of electrical circuits in homes and small businesses
- Use in distribution boards for circuit protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with an environmentally conscious process
- Halogen-free materials reduce environmental impact
- Complies with substance-restriction requirements
Warranty Information
Warranty terms as per Legrand standard policy; typically includes coverage against manufacturing defects. Refer to Legrand for specific warranty details.
Available Now
Legrand MCB TX3 6000A 3 Pole 2A Curve C is available for immediate purchase, ideal for residential and small commercial electrical panel protection.
