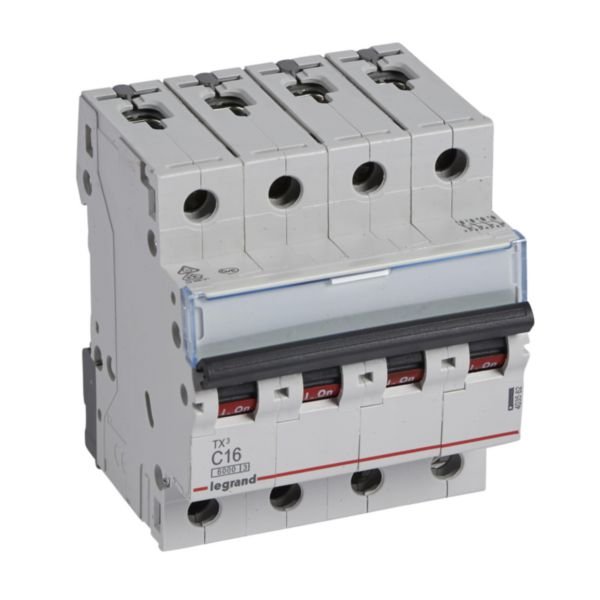

MCB TX3 6000A 4 Pole 16A Curve C | IP20 Rated | Energy Limitation Class 3 | by Legrand
The MCB TX3 6000A 4 Pole 16A Curve C is a reliable miniature circuit breaker designed for residential and small commercial electrical panels. With a breaking capacity of 6000A and IP20 protection, it ensures safety and efficiency in circuit protection. Ideal for qualified electricians, this circuit breaker features a tripping threshold between 80A and 160A, making it perfect for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB TX3 6000A 4 Pole 16A Curve C | IP20 Rated | Energy Limitation Class 3 | by Legrand
Brand: Legrand
SKU: 403562
Alternatively Known As: Miniature Circuit Breaker 4P 16A C Curve, Legrand TX3 MCB, 4 Pole Circuit Breaker 16 Amp
Technical Specifications
- Rated current: 16 A
- Number of poles: 4
- Rated voltage: 400 V AC
- Rated insulation voltage Ui: 500 V
- Rated impulse withstand voltage Uimp: 4 kV
- Rated short-circuit breaking capacity Icn: 10 kA at 230 V, 6 kA at 400 V
- Frequency: 50-60 Hz
- Current limiting class: 3
- Degree of protection: IP20
- Pollution degree: 2
- Mounting method: DIN rail
- Connection type: Screwed terminal, busbar and cable
- Colour: Grey (RAL 7035)
- Degree of impact strength: IK02
- Storage temperature range: -40 to 70 °C
- Flush-mounted installation: Yes
- Concurrently switching neutral conductor: Yes
- Dimensions (H x L x W): 88mm x 78mm x 71mm
- Weight: 0.3 kg
Key Features
- Breaking capacity of 6000A according to IEC 60898-1 standard
- Tripping threshold between 80A and 160A (C curve)
- IP20 protection against solid bodies larger than 12.5mm
- Energy limitation class 3 for let-through energy
- Compatible with Legrand DX3 auxiliaries and accessories
- Can be connected to aluminium cables with specific terminal accessory
- On/Off indication with red and green backgrounds on handle
- Label holder for clear circuit identification
- Fitted with special DIN rail clamp for easy removal
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with local electrical installation rules to ensure safety and proper operation.
Applications
- Residential and small commercial electrical panels
- Protection of electrical circuits in homes and small businesses
- Use in distribution boards for circuit protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with an environmentally conscious process
- Halogen-free materials reduce environmental impact
- Energy limitation class 3 reduces let-through energy, enhancing safety and efficiency
Warranty Information
Warranty terms as provided by Legrand, typically covering manufacturing defects. Refer to official Legrand documentation for details.
Available Now
The Legrand MCB TX3 6000A 4 Pole 16A Curve C Circuit Breaker is available for immediate purchase, ideal for residential and small commercial electrical panel protection.
