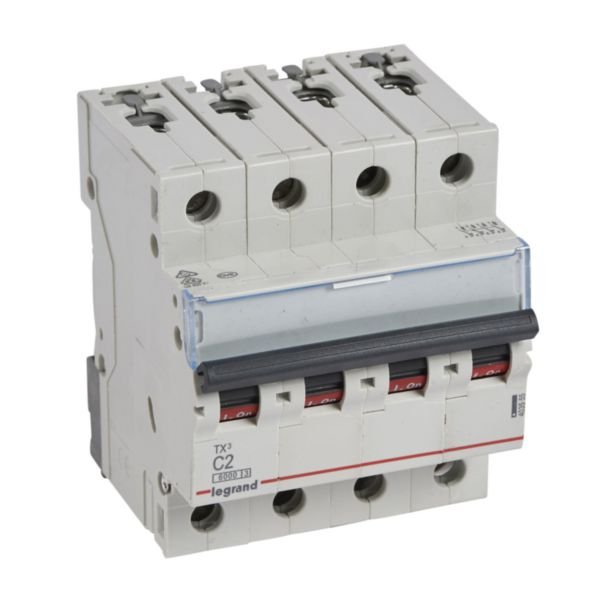

MCB TX3 6000A 4 Pole 2A Curve C | 10kA Breaking Capacity | IP20 Protection | by Legrand
The MCB TX3 6000A 4 Pole 2A Curve C is designed for reliable circuit protection in residential and small commercial electrical panels. With a breaking capacity of 10kA and IP20 protection, it ensures safety and compliance with local electrical standards. Ideal for protecting electrical circuits, this miniature circuit breaker is compatible with Legrand DX3 auxiliaries and features an easy-to-use DIN rail clamp for installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB TX3 6000A 4 Pole 2A Curve C | 10kA Breaking Capacity | IP20 Protection | by Legrand
Brand: Legrand
SKU: 403555
Alternatively Known As: Miniature Circuit Breaker 4 Pole 2A C Curve, Legrand TX3 MCB, 4P 2A Circuit Breaker, Legrand 6000A MCB
Technical Specifications
- Rated current: 2 A
- Rated voltage: 400 V AC
- Rated insulation voltage Ui: 500 V
- Rated impulse withstand voltage Uimp: 4 kV
- Rated short-circuit breaking capacity Icn: 10 kA at 230 V, 6 kA at 400 V
- Frequency: 50-60 Hz
- Current limiting class: 3
- Number of poles: 4
- Degree of protection: IP20
- Pollution degree: 2
- Mounting method: DIN rail
- Connection type: Screwed terminal, busbar and cable
- Colour: Grey (RAL 7035)
- Degree of impact strength: IK02
- Storage temperature range: -40 to 70 °C
- Electric supply direction: Top or bottom
- Dimensions (H x L x W): 88mm x 78mm x 71mm
- Weight: 0.3 kg
Key Features
- Breaking capacity of 6000A according to IEC 60898-1 standard
- Tripping threshold between 10A and 20A (C curve)
- IP20 protection against solid bodies larger than 12.5mm (fingerproof)
- Energy limitation class 3 for let-through energy
- Compatible with Legrand DX3 auxiliaries and accessories
- Can be connected to aluminium cables with specific terminal accessory
- On/Off indication with red and green backgrounds on handle
- Label holder for clear circuit identification
- Fitted with special DIN rail clamp for easy removal
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with local electrical installation rules to ensure safety and proper operation.
Applications
- Residential and small commercial electrical panels
- Protection of electrical circuits in household installations
- Use in distribution boards requiring 4-pole circuit protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with an environmentally conscious process
- Halogen-free materials reduce environmental impact
- Complies with substance-restriction requirements
Warranty Information
Warranty terms as per Legrand standard policy; typically covers manufacturing defects for a period of 1-2 years.
Available Now
The Legrand MCB TX3 6000A 4 Pole 2A Curve C is available for immediate purchase, ideal for residential and small commercial electrical panel protection.
