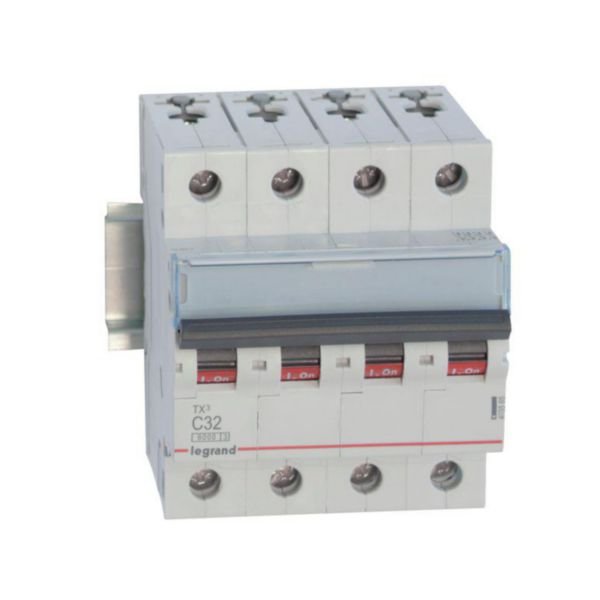

MCB TX3 6000A 4 Pole 32A Curve C | 10kA Breaking Capacity | IP20 Protection | @Each of 1 | by Legrand
The MCB TX3 6000A 4 Pole 32A Curve C is designed for reliable circuit protection in residential and small commercial electrical panels. With a breaking capacity of 10kA and IP20 protection, it ensures safety and compliance with AS/NZS 3000 standards. Ideal for qualified electricians, this circuit breaker features a tripping threshold between 160A and 320A, making it perfect for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB TX3 6000A 4 Pole 32A Curve C | 10kA Breaking Capacity | IP20 Protection | @Each of 1 | by Legrand
Brand: Legrand
SKU: 403565
Alternatively Known As: Miniature Circuit Breaker 4P 32A C Curve, Legrand TX3 MCB 6000A, 4 Pole Circuit Breaker 32 Amp, Legrand 4P MCB 32A
Technical Specifications
- Rated current: 32 A
- Number of poles: 4
- Rated voltage: 400 V AC
- Rated insulation voltage Ui: 500 V
- Rated impulse withstand voltage Uimp: 4 kV
- Rated short-circuit breaking capacity Icn: 10 kA at 230 V, 6 kA at 400 V
- Frequency: 50-60 Hz
- Current limiting class: 3
- Degree of protection: IP20
- Pollution degree: 2
- Mounting method: DIN rail
- Connection type: Screwed terminal, busbar and cable
- Colour: Grey (RAL 7035)
- Degree of impact strength: IK02
- Storage temperature range: -40 to 70 °C
- Flush-mounted installation: Yes
- Concurrently switching neutral conductor: Yes
- Dimensions (H x L x W): 88mm x 78mm x 71mm
- Weight: 0.3 kg
Key Features
- Breaking capacity of 6000A according to IEC 60898-1 standard
- Tripping threshold between 160A and 320A (C curve)
- IP20 protection against solid bodies larger than 12.5mm
- Energy limitation class 3 for let-through energy
- Compatible with Legrand DX3 auxiliaries and accessories
- Can connect to aluminium cables with specific terminal accessory
- On/Off indication with red and green backgrounds on handle
- Label holder for clear circuit identification
- Fitted with special DIN rail clamp for easy removal
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with local electrical installation rules to ensure safety and proper operation.
Applications
- Residential and small commercial electrical panels
- Protection of electrical circuits in homes and small businesses
- Use in distribution boards requiring 4-pole circuit protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with an environmentally conscious process
- Halogen-free materials reduce environmental impact
- Energy limitation class 3 reduces energy let-through during faults
Warranty Information
Warranty terms as per Legrand standard policy; typically covers manufacturing defects for a period of 1-3 years. Refer to official documentation for exact warranty details.
Available Now
The Legrand MCB TX3 6000A 4 Pole 32A Curve C is available for immediate purchase, ideal for residential and small commercial electrical panel protection.
