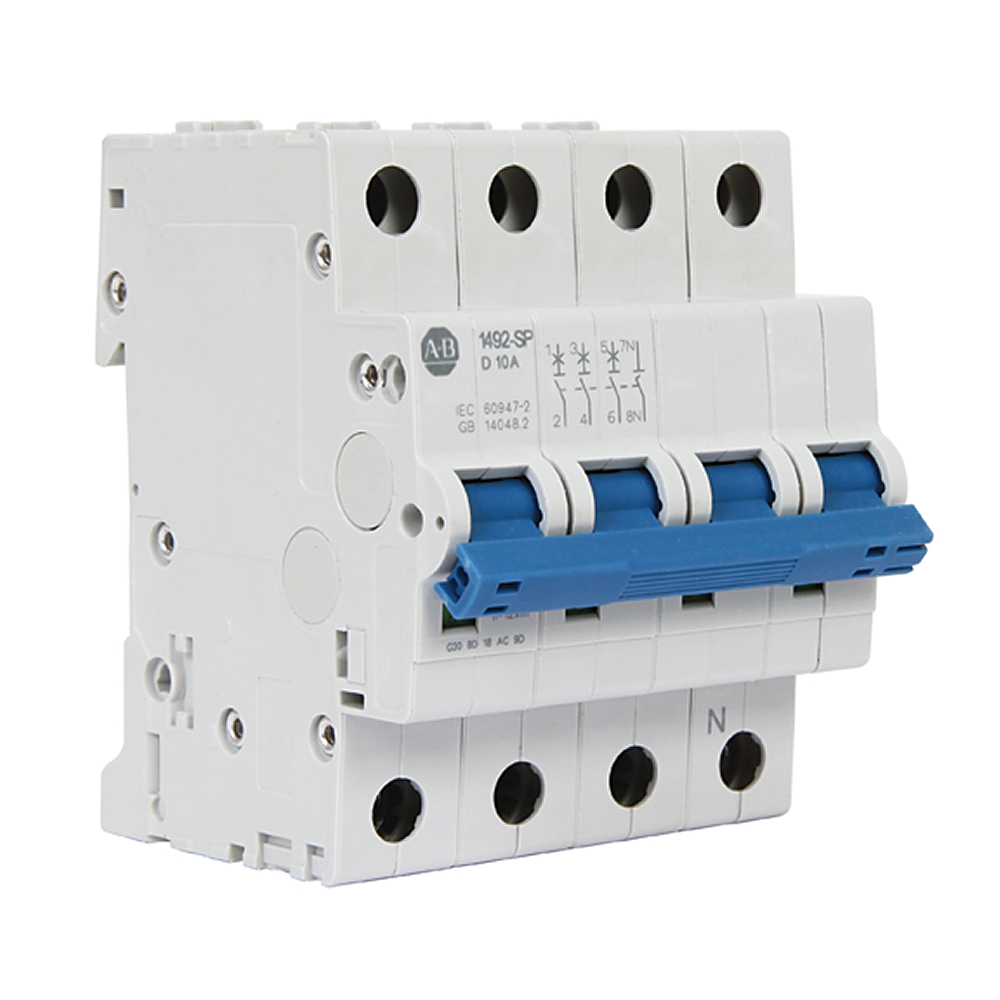

MCB UL1077 10kA 3P+N 5A D Curve Certified Circuit Breaker Reliable Protection by Allen-Bradley
MCB UL1077 10kA 3P+N 5A D Curve is designed for reliable circuit protection in industrial, commercial, and residential applications. With a breaking capacity of 10kA and a D Curve trip characteristic, it effectively handles moderate inrush currents. This miniature circuit breaker ensures compliance with safety standards and helps prevent electrical fires, making it an essential component for any electrical panel.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Miniature Circuit Breaker 3P+N 5A D Curve, UL1077 Circuit Breaker, 10kA MCB
Technical Specifications
- Certification: UL1077
- Breaking Capacity: 10kA
- Poles: 3P+N
- Current Rating: 5A
- Trip Curve: D Curve
- Voltage Rating: Typically up to 240/415V AC
- Dimensions (H x L x W): 85mm x 60mm x 70mm
- Weight: 0.3 kg
Key Features
- Miniature Circuit Breaker (MCB) with UL1077 certification
- Rated breaking capacity of 10kA
- 3 Pole plus Neutral configuration
- 5 Ampere current rating
- D Curve trip characteristic for moderate inrush currents
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards.
Applications
- Industrial electrical panels
- Commercial electrical distribution
- Residential circuit protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps prevent electrical fires and equipment damage by reliable circuit interruption
- Supports energy efficiency by protecting electrical systems from overloads
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley MCB UL1077 10kA 3P+N 5A D Curve is available for immediate purchase, ideal for protecting electrical circuits in industrial, commercial, and residential settings.
