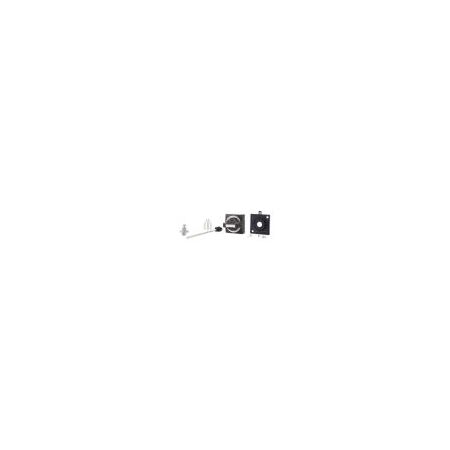

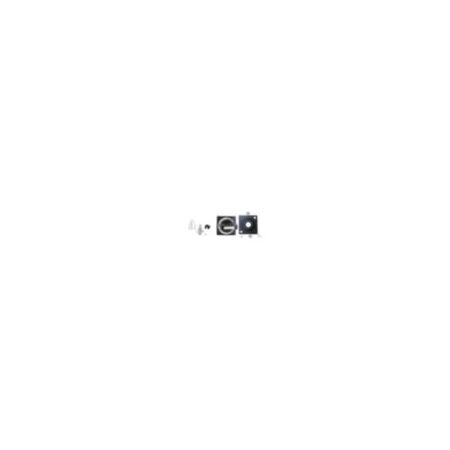

MCC Door Coupling Handle | Lockable with 3 Padlocks | IP65 Protection | Eaton
MCC door coupling handle with lockable design for up to 3 padlocks and IP65 protection—ideal for secure operation in MCC power distribution systems. Built for professionals, it ensures safety and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCC Door Coupling Handle | Lockable with 3 Padlocks | IP65 Protection | Eaton
Brand: Eaton
SKU: Y7-142418
Alternatively Known As: PKE Door Coupling Handle, MCC Handle, Eaton PKE Handle, Door Interlock Handle
Technical Specifications
- Lockable with 3 padlocks, 4 - 8 mm hasp thickness
- ON/OFF switch position and “+” (tripped) indication
- Axis extension Door interlock
- Degree of protection: IP65 NEMA 4X, 12
- Ambient operating temperature: -25 °C to 55 °C
- Product weight: 0.16 kg
- Meets product standard requirements for corrosion resistance, thermal stability, and insulation material resistance
- Certifications: CSA Class No.: 3211-05 CSA-C22.2 No. 14 UL File No.: E36332 CE UL Category Control No.: NLRV CSA UL 508 CSA File No.: 165628 IEC/EN 60947-4-1 UL
- Dimensions (H x L x W): 66mm x 235mm x 64mm
- Weight: 0.16 kg
Key Features
- Lockable with 3 padlocks, 4 - 8 mm hasp thickness
- ON/OFF switch position and “+” (tripped) indication
- Axis extension Door interlock
- Degree of protection: IP65 NEMA 4X, 12
- Suitable for MCC power distribution systems
Professional Installation Requirements
- Installation should be performed by a qualified professional familiar with MCC power distribution systems and relevant safety standards.
Applications
- Main switch to EN 60204 in MCC power distribution systems
- Use with PKE installed when rotated by 90°
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- High protection rating (IP65) ensures long service life in harsh environments
Warranty Information
Warranty details available upon request from Eaton.
Available Now
The Eaton Moeller PKE Door Coupling Handle MCC 90 Degree is available for immediate purchase. Ideal for use in MCC power distribution systems requiring secure door coupling and lockable switch operation.
