MCCB 125 Frame 200kA 3P 100A | Thermal Magnetic | Adjustable Trip by NHP
MCCB with 125 frame and 200kA breaking capacity—ideal for industrial power distribution. Built for reliable protection, with adjustable thermal and magnetic trip curves.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

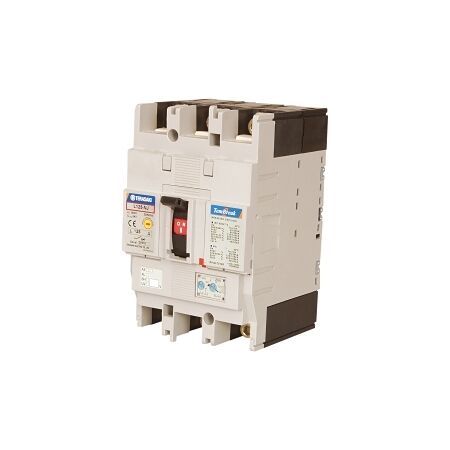

Product Name/Title: Terasaki TemBreak 2 MCCB 125 Frame 200kA 3P 100A Thermal Magnetic
Brand: NHP
SKU: L125NJ3100
Alternatively Known As: MCCB, Circuit Breaker, Thermal Magnetic Circuit Breaker
Technical Specifications
- Rated Current: 100 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 200 kA
- Rated Service Short Circuit Breaking Capacity: 150 kA
- Type of Protection: Thermal/magnetic release
- Trip Curve: Adjustable thermal, adjustable magnetic
- Frame Size Rating: 160 A
- Long Time Overload Protection Adjustment Range: 63-100 A
- Instantaneous Protection Adjustment Range: 600-1200 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Suitable for Isolation: Yes
- Rated Short Circuit Breaking Capacity at 690 V AC: 25 kA
- Rated Impulse Withstand Voltage: 8 kV
- Cable Cross Section Range: 35-185 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature Without Derating: 50 °C
- Maximum Operating Temperature: 70 °C
- Dimensions (H x L x W): 165mm x 151mm x 105mm
- Weight: 2.4 kg
Key Features
- Thermal/magnetic release for reliable protection
- Adjustable thermal and magnetic trip curves
- High short-circuit breaking capacity of 200 kA
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in commercial and industrial settings
- General: Suitable for various electrical installations requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Designed for long service life, reducing waste and resource consumption.
Warranty Information
Standard warranty as per manufacturer’s policy.
Available Now
The Terasaki TemBreak 2 MCCB 125 Frame 200kA 3P 100A Thermal Magnetic is available now for immediate purchase. Ideal for industrial applications requiring reliable circuit protection.
