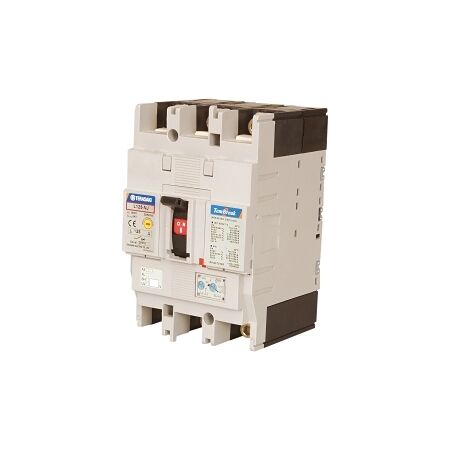

Terasaki TemBreak 2 MCCB 125 Frame 690V AC 70kA 3P 20A Thermal Magnetic

MCCB 125 Frame 690V AC | 70kA 3P 20A | Thermal Magnetic by NHP

BRAND: NHP

SKU: L125PJ320

$1,499.60 List price: $1,991.30

+ −

30 Days Return Delivery Options

MCCB with 125 frame and 690V AC, offering 70kA short-circuit capacity and 3P 20A thermal magnetic protection—ideal for industrial power distribution. Built for reliability, with adjustable trip curves for precise circuit protection.

Description
Attachments

Product Name/Title: Terasaki TemBreak 2 MCCB 125 Frame 690V AC 70kA 3P 20A Thermal Magnetic

Brand: NHP

SKU: L125PJ320

Alternatively Known As: MCCB, Circuit Breaker, Thermal Magnetic Circuit Breaker

Technical Specifications

Rated Current: 20 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V AC
Rated Short Circuit Breaking Capacity: 70 kA
Rated Insulation Voltage: 800 V
Rated Frequency: 50-60 Hz
Mechanical Life: 7000 cycles
Electrical Life: 1000 cycles
Power Loss: 31.8 W
Dimensions (H x L x W): 165mm x 127mm x 105mm
Weight: 2.4 kg

Key Features

Thermal/magnetic release for reliable protection
Adjustable thermal and magnetic trip curves
High short-circuit breaking capacity of 70 kA

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution and protection in commercial and industrial settings
General: Suitable for various electrical installations requiring circuit protection

Standards & Compliance

Complies with AS/NZS 3000 for electrical installations.

Environmental Benefits

Designed for long service life, reducing waste and resource consumption.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Terasaki TemBreak 2 MCCB 125 Frame 690V AC 70kA 3P 20A is available now for immediate purchase. Ideal for industrial applications requiring reliable circuit protection.

Non-Returnable & Non-Cancellable

L125PJ320-AU-TB2-MCCB-Datasheet.pdf (L125PJ320-AU-TB2-MCCB-Datasheet.pdf, 1,135 Kb) [Download]
