MCCB 125 Frame 690V AC | 70kA 3P 125A | Thermal Magnetic by NHP
MCCB with 125 frame and 690V AC, featuring 70kA short-circuit capacity and thermal magnetic release—ideal for industrial and commercial power distribution. Built for reliable protection, with adjustable trip settings and high efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

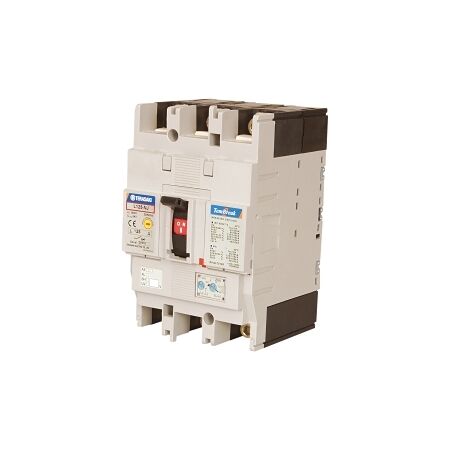

Product Name/Title: Terasaki TemBreak 2 MCCB 125 Frame 690V AC 70kA 3P 125A Thermal Magnetic
Brand: NHP
SKU: L125PJ3125
Alternatively Known As: MCCB, Circuit Breaker, Thermal Magnetic Circuit Breaker
Technical Specifications
- Rated Current: 125 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V AC
- Rated Short Circuit Breaking Capacity: 70 kA
- Rated Insulation Voltage: 800 V
- Rated Frequency: 50-60 Hz
- Power Loss: 30 W
- Mechanical Life: 7000 cycles
- Cable Cross Section Range: 1.5-35 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature: 50 °C
- Dimensions (H x L x W): 165mm x 127mm x 105mm
- Weight: 2.4 kg
Key Features
- Thermal/magnetic release for reliable protection.
- Adjustable thermal and magnetic trip settings.
- High short-circuit breaking capacity of 70 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss.
- Long mechanical life contributes to less waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Terasaki TemBreak 2 MCCB 125 Frame 690V AC 70kA 3P 125A is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
Non-Returnable & Non-Cancellable
