MCCB 1250A 3P | 50kA Breaking Capacity | Electronic Trip | NHP
MCCB with 1250A rated current and 3 poles—ideal for industrial and commercial power distribution. Built for precise protection with electronic trip unit and high 50kA breaking capacity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

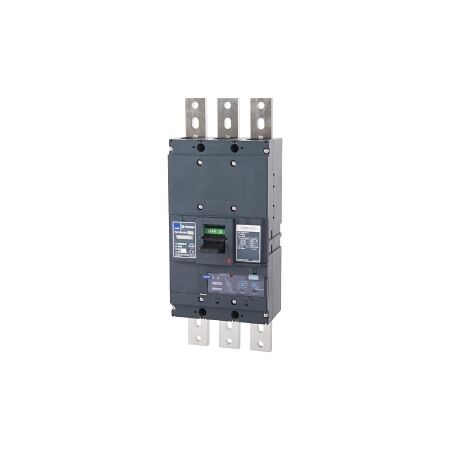

Product Name/Title: Terasaki TemBreak PRO MCCB 1250 Frame 50kA 3P 1250A Basic Electronic with Cbl Intlk
Brand: NHP
SKU: B1250N31250BECI
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 1250A
Technical Specifications
- Rated Current: 1250 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 50 kA
- Rated Service Short Circuit Breaking Capacity: 38 kA
- Trip Curve: LSI
- Long Time Overload Protection Adjustment Range: 500-1250 A
- Instantaneous Protection Adjustment Range: 3125-15000 A
- Rated Insulation Voltage: 800 V
- Rated Impulse Withstand Voltage: 8 kV
- Power Loss: 270 W
- Electrical Life: 4000 cycles
- Mechanical Life: 5000 cycles
- Max Vibration Acceleration: 19 m/s²
- Max Operating Temperature: 70 °C
- Dimensions (H x L x W): 530mm x 171mm x 210mm
- Weight: 19.8 kg
Key Features
- Electronic release trip unit for precise protection.
- High breaking capacity of 50 kA at 415 V.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in large buildings
- General: Protection of electrical circuits from overload and short circuits
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and operational costs.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 1250 Frame 50kA 3P 1250A is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
