MCCB 1250A 4P | 85kA Breaking Capacity | Electronic Trip | NHP
MCCB with 1250A rated current and 85kA breaking capacity—ideal for industrial and commercial power distribution. Built for high efficiency, with electronic trip unit and cable interlock for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

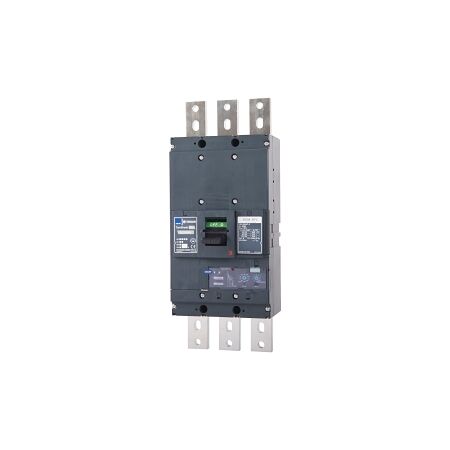

Product Name/Title: Terasaki TemBreak PRO MCCB 1250 Frame 85kA 4P 1250A Basic Electronic with Cbl Intlk
Brand: NHP
SKU: B1250HL41250BECI
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 1250A
Technical Specifications
- Rated Current: 1250 A
- Number of Poles: 4
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 100 kA
- Rated Service Short Circuit Breaking Capacity: 75 kA
- Trip Curve: LSI
- Rated Insulation Voltage: 800 V
- Short Time Withstand Current: 15 kA
- Rated Impulse Withstand Voltage: 8 kV
- Power Loss: 270 W
- Mechanical Life: 5000 cycles
- Dimensions (H x L x W): 530mm x 171mm x 280mm
- Weight: 25 kg
Key Features
- 1250A rated current with electronic release trip unit.
- High short circuit breaking capacity of 100 kA.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in large buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for electrical equipment.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and operational costs.
Warranty Information
Standard warranty of 2 years against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 1250 Frame 85kA 4P 1250A is available now for immediate purchase, ideal for industrial and commercial electrical systems.
