MCCB 125A 4P | 25kA Short Circuit | 1000V Insulation by NHP
MCCB with 125A rated current and 4 poles—ideal for industrial and commercial power distribution. Built for reliable circuit protection, with 25kA short circuit capacity and 1000V insulation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

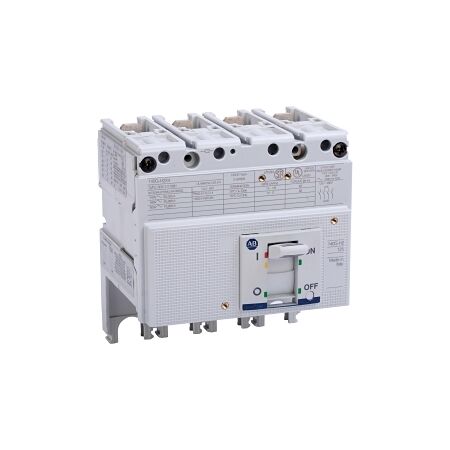

Product Name/Title: Allen-Bradley 140G MCCB H Frame Less Trip Unit 25kA 4P
Brand: NHP
SKU: 140GH2X4
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 25kA
Technical Specifications
- Rated current: 125 A
- Number of poles: 4
- Max rated operation voltage: 690 V
- Rated ultimate short circuit breaking capacity: 25 kA at 415 V
- Rated service short circuit breaking capacity: 36 kA at 415 V
- Frame size rating: 160 A
- Rated frequency: 50-60 Hz
- Rated insulation voltage: 1000 V
- Rated short circuit breaking capacity: 10 kA at 690 V AC
- Rated impulse withstand voltage: 8 kV
- Mechanical life: 25000 cycles
- Max operating temperature: 75 °C
- Storage temperature: -40 to 80 °C
- Max altitude before derating: 2000 m
- Dimensions (H x L x W): 100mm x 116mm x 120mm
- Weight: 5 kg
Key Features
- Rated current: 125 A
- 4 poles for versatile applications
- 25 kA short circuit breaking capacity at 415 V
- Rated insulation voltage: 1000 V
- Electrical life: 8000 cycles
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Any application requiring reliable circuit protection
Standards & Compliance
- Complies with AS/NZS 60898 for circuit breakers.
Environmental Benefits
- Designed for high performance and reliability in demanding environments.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 140G MCCB H Frame Less Trip Unit 25kA 4P is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.
