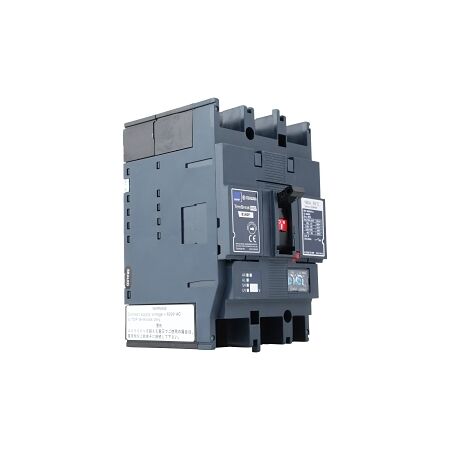

Terasaki TemBreak PRO MCCB 160 Frame 125kA 3P 125A Adj. Thermal Adj. Magnetic

MCCB 160 Frame 125kA 3P 125A | Adj. Thermal & Magnetic | High Capacity by NHP

BRAND: NHP

SKU: B160P33125TM

$1,295.30 List price: $1,720.00

+ −

30 Days Return Delivery Options

MCCB with 160 frame and 125kA breaking capacity, featuring adjustable thermal and magnetic trip settings—ideal for industrial and commercial power distribution. Built for high efficiency and reliability, ensuring optimal circuit protection.

Description
Attachments

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 125kA 3P 125A Adj. Thermal Adj. Magnetic

Brand: NHP

SKU: B160P33125TM

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 125A

Technical Specifications

Rated Current: 125 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 125 kA
Rated Service Short Circuit Breaking Capacity: 80 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Frame Size Rating: 160 A
Long Time Overload Protection Adjustment Range: 80-125 A
Instantaneous Protection Adjustment Range: 750-1500 A
Rated Insulation Voltage: 800 V
Rated Short Circuit Breaking Capacity at 690 V: 20 kA
Rated Impulse Withstand Voltage: 8 kV
Mechanical Life: 20,000 cycles
Electrical Life: 10,000 cycles
Dimensions (H x L x W): 165mm x 151mm x 105mm
Weight: 1 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High short-circuit breaking capacity of 125 kA at 415 V.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical systems in commercial buildings
General: Protection of electrical circuits in various applications

Environmental Benefits

Designed for high efficiency, reducing energy loss and improving system reliability.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 160 Frame 125kA 3P 125A is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

Non-Returnable & Non-Cancellable

B160P33125TM-AU-TBP-MCCB-160AF-Datasheet.pdf (B160P33125TM-AU-TBP-MCCB-160AF-Datasheet.pdf, 1,053 Kb) [Download]
