MCCB 160 Frame 125kA 3P 32A | Adjustable Thermal & Magnetic | High Breaking Capacity by NHP
MCCB with 160 frame and 125kA breaking capacity, featuring adjustable thermal and magnetic trip settings—ideal for industrial and commercial power distribution. Built for reliable circuit protection, with high efficiency to reduce energy loss.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

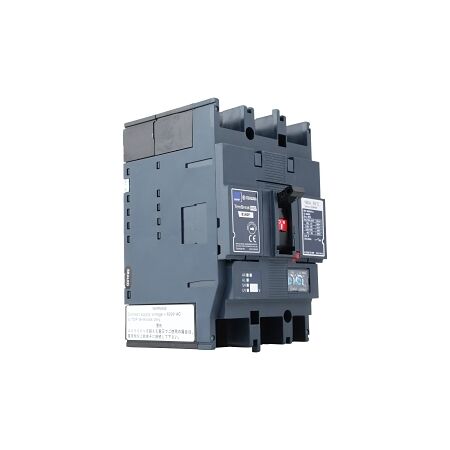

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 125kA 3P 32A Adj. Thermal Adj. Magnetic
Brand: NHP
SKU: B160P3332TM
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 32A
Technical Specifications
- Rated Current: 32 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 125 kA
- Rated Service Short Circuit Breaking Capacity: 80 kA
- Type of Protection: Thermal/magnetic release
- Trip Curve: Adjustable thermal, adjustable magnetic
- Frame Size Rating: 160 A
- Long Time Overload Protection Adjustment Range: 20-32 A
- Instantaneous Protection Adjustment Range: 192-384 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity (ICU): 20 kA
- Rated Short Circuit Breaking Capacity (ICS): 15 kA
- Rated Impulse Withstand Voltage: 8 kV
- Over Voltage Category: IV
- Power Loss: 53.42 W
- Mechanical Life: 20,000 cycles
- Electrical Life: 10,000 cycles
- Cable Cross Section Range: 35-185 mm²
- Dimensions (H x L x W): 165mm x 151mm x 105mm
- Weight: 1 kg
Key Features
- Adjustable thermal and magnetic trip settings for customized protection.
- High breaking capacity of 125 kA for reliable short circuit protection.
- Suitable for isolation and front-side connection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical protection in commercial buildings
- General: Suitable for various electrical installations requiring circuit protection
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for electrical safety and performance.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and operational costs.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 160 Frame 125kA 3P 32A is available now for immediate purchase. Ideal for industrial and commercial electrical protection.
