MCCB 160 Frame 125kA 4P 100A | Adjustable Thermal & Magnetic | High Capacity by NHP
MCCB with 160 frame and 125kA breaking capacity, featuring adjustable thermal and magnetic trip settings—ideal for industrial and residential power distribution. Built for high efficiency and safety, with professional installation recommended.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

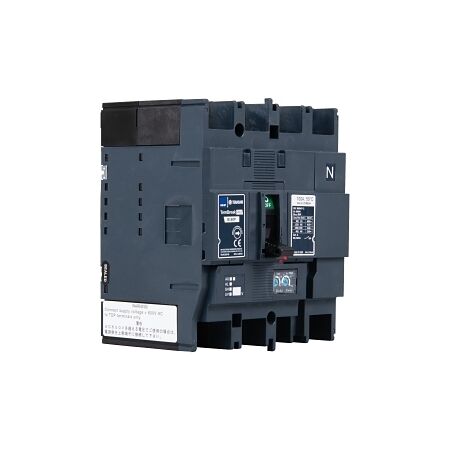

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 125kA 4P 100A Adj. Thermal Adj. Magnetic
Brand: NHP
SKU: B160P34100TM
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 100A
Technical Specifications
- Rated Current: 100 A
- Number of Poles: 4
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 125 kA
- Rated Service Short Circuit Breaking Capacity: 80 kA
- Type of Protection: Thermal/magnetic release
- Trip Curve: Adjustable thermal, adjustable magnetic
- Frame Size Rating: 160 A
- Long Time Overload Protection Adjustment Range: 63-100 A
- Instantaneous Protection Adjustment Range: 1200-1600 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity: 20 kA at 690 V AC
- Rated Impulse Withstand Voltage: 8 kV
- Mechanical Life: 20000 cycles
- Electrical Life: 10000 cycles
- Power Loss: 42.51 W
- Dimensions (H x L x W): 165mm x 151mm x 140mm
- Weight: 1.3 kg
Key Features
- Adjustable thermal and magnetic trip settings for customized protection.
- High short-circuit breaking capacity of 125 kA at 415 V.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in commercial and industrial settings
- Residential: Electrical safety in large homes or multi-family units
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and improving overall system performance.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 160 Frame 125kA 4P 100A is available now for immediate purchase. Ideal for industrial and residential electrical safety applications.
