MCCB 160 Frame 200kA 3P 100A | Adjustable Thermal & Magnetic | High Capacity by NHP
MCCB with 160 frame and 200kA breaking capacity, featuring adjustable thermal and magnetic trip settings—ideal for industrial and commercial power distribution. Built for high efficiency and safety, with professional installation recommended.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

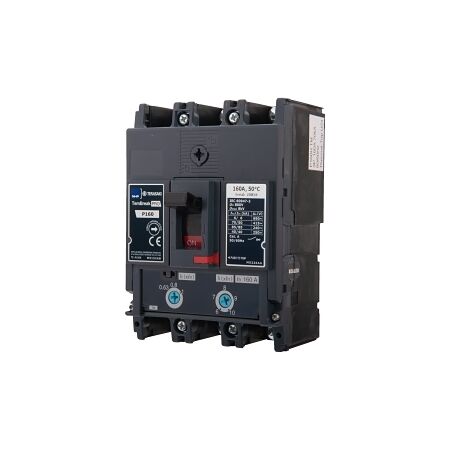

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 200kA 3P 100A Adj. Thermal Adj. Magnetic
Brand: NHP
SKU: B160R33100TM
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 100A
Technical Specifications
- Rated Current: 100 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 200 kA
- Rated Service Short Circuit Breaking Capacity: 135 kA
- Type of Protection: Thermal/magnetic release
- Trip Curve: Adjustable thermal, adjustable magnetic
- Frame Size Rating: 160 A
- Long Time Overload Protection Adjustment Range: 63-100 A
- Instantaneous Protection Adjustment Range: 600-1200 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity: 25 kA at 690 V AC
- Rated Impulse Withstand Voltage: 8 kV
- Power Loss: 42.51 W
- Mechanical Life: 20000 cycles
- Max Vibration Acceleration: 19 m/s²
- Cable Cross Section Range: 35-185 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature: 50 °C
- Dimensions (H x L x W): 165mm x 151mm x 105mm
- Weight: 1 kg
Key Features
- Adjustable thermal and magnetic trip settings for customized protection.
- High short-circuit breaking capacity of 200 kA at 415 V.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical protection in commercial buildings
- General: Suitable for various electrical installations requiring circuit protection
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for electrical equipment.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and improving overall system performance.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 160 Frame 200kA 3P 100A is available now for immediate purchase. Ideal for industrial and commercial electrical protection.
Non-Returnable & Non-Cancellable
