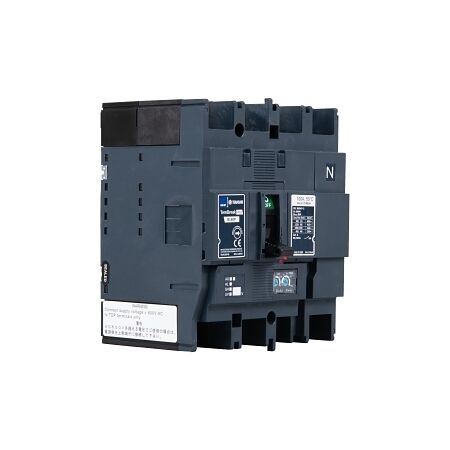

Terasaki TemBreak PRO MCCB 160 Frame 200kA 4P 100A Adj. Thermal Adj. Magnetic

MCCB 160 Frame 200kA 4P 100A | Adjustable Thermal & Magnetic | High Capacity by NHP

BRAND: NHP

SKU: B160R34100TM

$2,255.60 List price: $2,995.20

+ −

30 Days Return Delivery Options

MCCB with 160 frame and 200kA breaking capacity, featuring adjustable thermal and magnetic trip settings—ideal for industrial and commercial power distribution. Built for high efficiency and safety, with compliance to AS/NZS IEC 60947.2 standards.

Description
Attachments

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 200kA 4P 100A Adj. Thermal Adj. Magnetic

Brand: NHP

SKU: B160R34100TM

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 100A

Technical Specifications

Rated Current: 100 A
Number of Poles: 4
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 200 kA
Rated Service Short Circuit Breaking Capacity: 135 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Frame Size Rating: 160 A
Long Time Overload Protection Adjustment Range: 63-100 A
Instantaneous Protection Adjustment Range: 1200-1600 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Rated Short Circuit Breaking Capacity: 25 kA at 690 V AC
Rated Impulse Withstand Voltage: 8 kV
Mechanical Life: 20000 cycles
Electrical Life: 10000 cycles
Cable Cross Section Range: 35-185 mm²
Dimensions (H x L x W): 165mm x 151mm x 140mm
Weight: 1.3 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High short-circuit breaking capacity of 200 kA at 415 V.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical systems in commercial buildings
General: Protection of electrical circuits in various applications

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed for high efficiency, reducing energy loss and improving overall system performance.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 160 Frame 200kA 4P 100A is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

Non-Returnable & Non-Cancellable

B160R34100TM-AU-TBP-MCCB-160AF-Datasheet.pdf (B160R34100TM-AU-TBP-MCCB-160AF-Datasheet.pdf, 1,017 Kb) [Download]
