MCCB 160 Frame 200kA 4P 50A | Adjustable Thermal & Magnetic | Front Connection by NHP
MCCB with 50A rated current and 4 poles, featuring adjustable thermal and magnetic trip settings—ideal for industrial and commercial power distribution. Built for high short circuit capacity, with front side connection for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

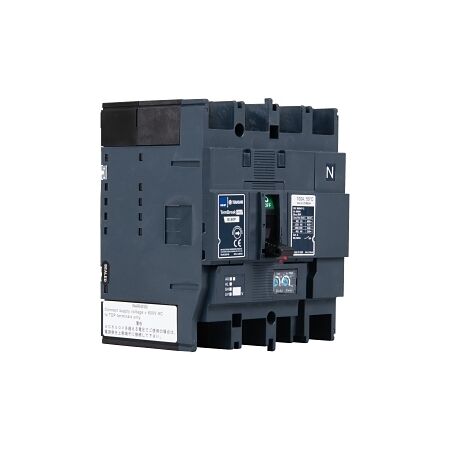

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 200kA 4P 50A Adj. Thermal Adj. Magnetic
Brand: NHP
SKU: B160R3450TM
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 50A
Technical Specifications
- Rated current: 50 A
- Number of poles: 4
- Max rated operation voltage: 690 V
- Rated ultimate short circuit breaking capacity: 200 kA
- Rated service short circuit breaking capacity: 135 kA
- Type of protection trip unit: Thermal/magnetic release
- Trip curve: Adjustable thermal, adjustable magnetic
- Frame size rating: 160 A
- Long time overload protection adjustment range: 32-50 A
- Instantaneous protection adjustment range: 300-600 A
- Rated frequency: 50-60 Hz
- Rated insulation voltage: 800 V
- Rated short circuit breaking capacity: 25 kA at 690 V AC
- Rated impulse withstand voltage: 8 kV
- Over voltage category: IV
- Electrical life: 10,000 cycles
- Mechanical life: 20,000 cycles
- Cable cross section range: 35-185 mm²
- Dimensions (H x L x W): 165mm x 151mm x 140mm
- Weight: 1.3 kg
Key Features
- Rated current: 50 A
- 4 poles with adjustable thermal and magnetic trip settings
- Rated ultimate short circuit breaking capacity: 200 kA
- Front side connection for main current circuit
- Suitable for isolation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical panels in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed to operate efficiently in a wide range of temperatures and humidity levels.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Terasaki TemBreak PRO MCCB 160 Frame 200kA 4P 50A is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
