MCCB 160 Frame 25kA 1P 16A | Fixed Thermal & Magnetic | High Breaking Capacity by NHP
MCCB with 160 frame and 25kA breaking capacity—ideal for industrial and commercial electrical systems. Built for reliable circuit protection, with fixed thermal and magnetic trip unit.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

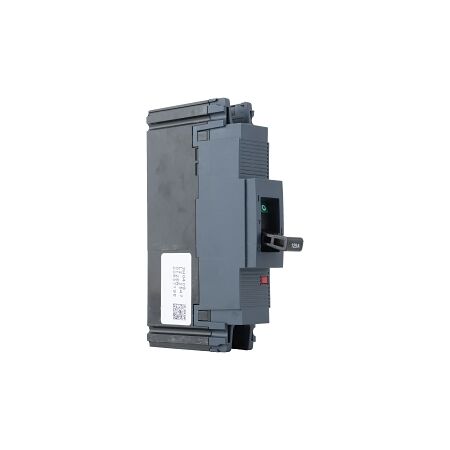

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 25kA 1P 16A Fix. Thermal Fix. Magnetic
Brand: NHP
SKU: A160E1116FF
Alternatively Known As: MCCB, Circuit Breaker, Thermal Magnetic Circuit Breaker
Technical Specifications
- Rated Current: 16 A
- Number of Poles: 1
- Max Rated Operation Voltage: 240 V
- Rated Ultimate Short Circuit Breaking Capacity: 25 kA
- Rated Service Short Circuit Breaking Capacity: 13 kA
- Type of Protection Trip Unit: Thermal/magnetic release
- Rated Insulation Voltage: 690 V
- Electrical Life: 10,000 cycles
- Mechanical Life: 20,000 cycles
- Cable Cross Section Range: 1.5-35 mm²
- Rated Surrounding Temperature: 50 °C
- Maximum Operating Temperature: 70 °C
- Dimensions (H x L x W): 130mm x 95mm x 25mm
- Weight: 0.3 kg
Key Features
- Fixed thermal and magnetic trip unit for reliable protection.
- High breaking capacity of 25 kA at 415 V.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor control and protection
- Commercial: Electrical distribution systems
- General: Circuit protection in various electrical installations
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for circuit breakers.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and improving system reliability.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 160 Frame 25kA 1P 16A is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
