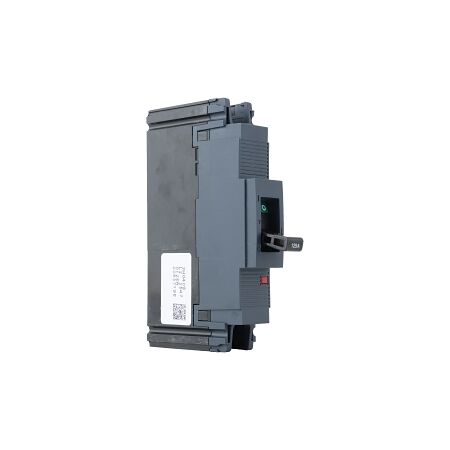

Terasaki TemBreak PRO MCCB 160 Frame 25kA 1P 50A Fix. Thermal Fix. Magnetic

MCCB 160 Frame 25kA 1P 50A | Fixed Thermal & Magnetic | High Breaking Capacity by NHP

BRAND: NHP

SKU: A160E1150FF

$112.70 List price: $149.70

+ −

30 Days Return Delivery Options

MCCB with 160 frame size and 25kA breaking capacity—ideal for industrial and commercial electrical systems. Built for reliable circuit protection, with fixed thermal and magnetic trip units.

Description
Attachments

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 25kA 1P 50A Fix. Thermal Fix. Magnetic

Brand: NHP

SKU: A160E1150FF

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 50A

Technical Specifications

Rated Current: 50 A
Number of Poles: 1
Max Rated Operation Voltage: 240 V
Rated Ultimate Short Circuit Breaking Capacity: 25 kA
Rated Service Short Circuit Breaking Capacity: 13 kA
Type of Protection Trip Unit: Thermal/magnetic release
Trip Curve: Fixed thermal, fixed magnetic
Frame Size Rating: 160 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 690 V
Rated Impulse Withstand Voltage: 8 kV
Electrical Life: 10,000 cycles
Mechanical Life: 20,000 cycles
Cable Cross Section Range: 1.5-35 mm²
Pollution Degree: 3
Rated Surrounding Temperature: 50 °C
Maximum Operating Temperature: 70 °C
Dimensions (H x L x W): 130mm x 95mm x 25mm
Weight: 0.3 kg

Key Features

Fixed thermal and magnetic trip unit for reliable protection.
High breaking capacity of 25 kA at 415 V.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Motor control and protection
Commercial: Electrical distribution systems
General: Circuit protection in various electrical installations

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for circuit breakers.

Environmental Benefits

Designed for high efficiency, reducing energy loss and improving system reliability.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 160 Frame 25kA 1P 50A is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

A160E1150FF-AU-TBP-MCCB-160AF-Datasheet.pdf (A160E1150FF-AU-TBP-MCCB-160AF-Datasheet.pdf, 269 Kb) [Download]
